INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo]

id0113b5800400

Warning

•  A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.

•  Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.

•  Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line Safety Procedure”. (See BEFORE SERVICE PRECAUTION[L3 Turbo].)

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION[L3 Turbo].)

2.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION[L3 Turbo].)

3.  Remove the under cover and splash shield.

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

6.  Complete the “AFTER REPAIR PROCEDURE”. (See AFTER SERVICE PRECAUTION[L3 Turbo].)

7.  Add the engine coolant to the cooling system filler neck and the coolant reserve tank to replace that during servicing. (Turbocharger not removed)

8.  Refill the engine coolant. (Turbocharger removed)

9.  Inspect the engine coolant level. (See ENGINE COOLANT LEVEL INSPECTION [L3 Turbo].)

10.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [L3 Turbo].)

11.  Perform the following procedure.

When newly replacing turbocharger

•  Replace the engine oil. (See ENGINE OIL REPLACEMENT [L3 Turbo].)

When installing a removed turbocharger

•  Inspect the engine oil level. (See ENGINE OIL LEVEL INSPECTION [L3 Turbo].)

am3zzw00004586

1	Air intake cover
2	MAF/IAT sensor
3	Air cleaner cover (See Air Cleaner Removal Note.)
4	Air cleaner element
5	Air cleaner case (See Air Cleaner Removal Note.)
6	Strap (See Air Cleaner Removal Note.) (See Strap Installation Note.)
7	Fresh-air duct
8	Charge air cooler cover
9	Charge air cooler (See Charge Air Cooler Removal Note.)
10	Air bypass valve
11	Air hose (See Air Hose Removal Note.)
12	Air duct (See Air Duct Removal Note)
13	Throttle body (See Throttle Body Removal Note.) (See Throttle Body Installation Note.)
14	Vacuum chamber
15	Variable swirl solenoid valve
16	Intake manifold (See Intake Manifold Removal Note.)
17	Wastegate control solenoid valve (See Wastegate Control Solenoid Valve Installation Note.)
18	Turbocharger (See Turbocharger Removal Note.) (See Turbocharger Installation Note.)

Air Cleaner Removal Note

1.  Remove the slide rubber mount shown in the figure in the following procedure:

am3zzw00013127

(1)  Pull out the checker tab shown in the figure.

am3zzw00013128

(2)  Slide the slide rubber mount in the direction shown by the arrow while pulling up the rubber.

am3zzw00013129

2.  Remove the air cleaner.

3.  Remove the strap shown in the figure.

am3zzw00013130

Charge Air Cooler Removal Note

1.  Remove the charge air cooler duct.

am3zzw00013131

2.  Remove the charge air cooler cover.

3.  Remove the charge air cooler.

4.  Remove the charge air cooler bracket.

Air Hose Removal Note

1.  Disconnect the variable swirl shutter valve switch connector.

2.  Disconnect the fuel injector harness connector.

3.  Disconnect the ventilation hose connected to the air hose.

4.  Remove the air hose.

Air Duct Removal Note

1.  Disconnect the wastegate control solenoid valve connector.

2.  Disconnect the purge solenoid valve connector.

3.  Disconnect the EGR valve connector.

4.  Remove the air duct.

Throttle Body Removal Note

Warning

•  Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.

•  When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

Caution

•  Do not plug the water hose with a sharp-edged object. Otherwise, the hose could be damaged.

Turbocharger not removed

Note

•  If the turbocharger is not removed at the same time (if only throttle body is removed), remove the throttle body without draining the engine coolant.

1.  Disconnect the throttle body connector.

2.  Wrap a clean cloth around the cooling system cap and release the pressure by loosening the cap slowly.

3.  Remove the water hose from the throttle body and plug the water hose quickly.

4.  Remove the throttle body.

Turbocharger removed

Note

•  If the turbocharger is removed at the same time, drain the engine coolant and remove the throttle body.

1.  Disconnect the throttle body connector.

2.  Drain the engine coolant before disconnect the water hose. (See ENGINE COOLANT REPLACEMENT [L3 Turbo].)

3.  Remove the throttle body.

Intake Manifold Removal Note

1.  Remove the fuel delivery pipe cover.

am3zzw00013132

2.  Disconnect the quick connector connected to the intake manifold.

3.  Remove the EGR pipe.

4.  Disconnect the variable swirl solenoid valve connector.

5.  Remove the oil level gauge pipe. (See OIL PAN REMOVAL/INSTALLATION[L3 Turbo].)

6.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION[L3 Turbo].)

7.  Set the power steering oil pump out of the way.

8.  Disconnect the fuel pressure sensor connector.

9.  Disconnect the brake vacuum hose.

10.  Disconnect the MAP sensor connector.

11.  Remove the intake manifold installation bolts.

12.  Disconnect the evaporative hose connected between the intake manifold and the PCV valve from the intake manifold.

13.  Remove the intake manifold.

Turbocharger Removal Note

1.  Remove the TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 Turbo].)

2.  Disconnect the HO2S

3.  Remove the insulator (Exhaust manifold upper side). (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 Turbo].)

4.  Set the generator duct out of the way. (See GENERATOR REMOVAL/INSTALLATION[L3 Turbo].)

5.  Remove the insulator (Exhaust manifold lower side). (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 Turbo].)

6.  Remove the insulator (WU-TWC top side). (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 Turbo].)

7.  Remove the A/F sensor. (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 Turbo].)

8.  Remove the WU-TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 Turbo].)

9.  Remove the oil pipe, water pipe, and insulator.

am3zzw00004587

10.  Remove the turbocharger.

am3zzw00013133

Turbocharger Installation Note

1.  Install the turbocharger.

am3zzw00013134

2.  Install the WU-TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 Turbo].)

3.  Install the A/F sensor. (See EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 Turbo].)

4.  Install the insulator.

am3zzw00004588

5.  Install the water pipe and oil pipe, then insert the water hose until it reaches the stopper.

am3zzw00004589

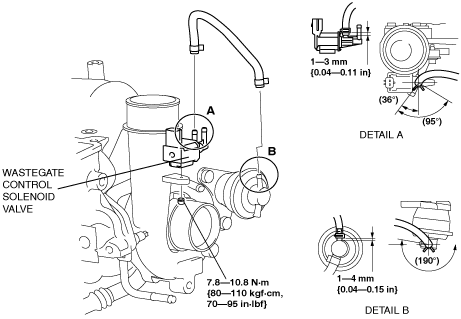

Wastegate Control Solenoid Valve Installation Note

1.  Install the wastegate control solenoid valve.

am3zzw00013135

2.  Install the hose as shown in the figure.

Throttle Body Installation Note

1.  Tighten the throttle body installation bolts in the order shown in the figure.

am3zzw00013136

2.  Remove the plug from the engine coolant hose and install the water hose to the throttle body quickly. (Turbocharger not removed)

3.  Install the water hose to the throttle body. (Turbocharger removed)

Strap Installation Note

1.  Using the strap, secure the shroud panel and the air cleaner case as shown in the figure.

am3zzw00013137
