VARIABLE VALVE TIMING ACTUATOR INSPECTION[L3 Turbo]

id0110b3801200

Caution

•  Due to the precision interior construction of the variable valve timing actuator, it cannot be disassembled.

1.  Remove the battery cover.

2.  Disconnect the negative battery cable.

3.  Remove the charge air cooler. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 Turbo].)

4.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION[L3 Turbo].)

5.  Remove the spark plugs. (See SPARK PLUG REMOVAL/INSTALLATION[L3 Turbo].)

6.  Disconnect the wiring harness.

7.  Remove the ventilation hose.

8.  Remove cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION[L3 Turbo].)

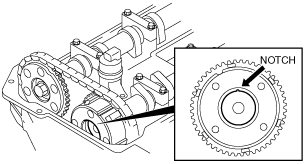

9.  Verify that the groove of the rotor and notch of the cover on the variable valve timing actuator are aligned and fitted.

•  If they are not aligned, rotate the crankshaft in the direction of engine rotation two times and verify that they are aligned.

―  If they will not align, replace the variable valve timing actuator.

•  If under any condition, the variable valve timing actuator always makes a hitting noise directly after the camshaft exceeds maximum lift while rotating the crankshaft two times in the direction of engine rotation, replace the variable valve timing actuator as it has not been fixed.

acxuuw00000143

10.  Install the cylinder head cover.

(See TIMING CHAIN REMOVAL/INSTALLATION[L3 Turbo].)

11.  Install the ventilation hose.

12.  Connect the wiring harness.

13.  Install the spark plugs. (See SPARK PLUG REMOVAL/INSTALLATION[L3 Turbo].)

14.  Install the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION[L3 Turbo].)

15.  Install the charge air cooler. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 Turbo].)

16.  Connect the negative battery cable.

17.  Install the battery cover.
