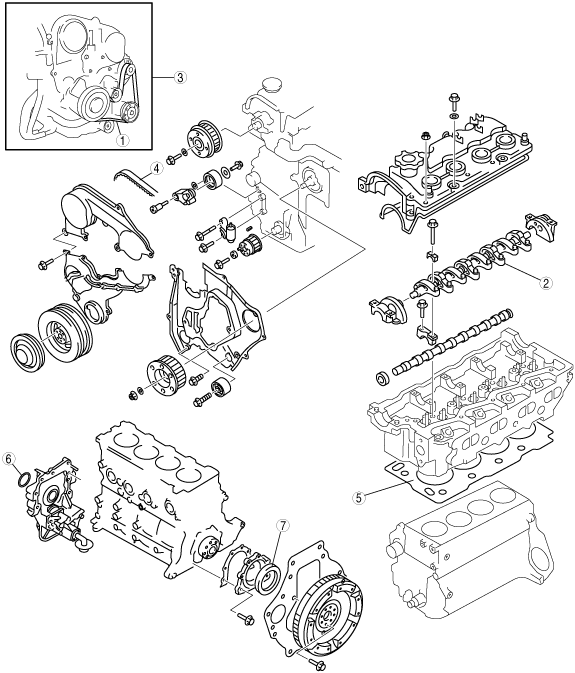

ENGINE LOCATION INDEX [MZR-CD (RF Turbo)]

id0110f1802100

am3zzw00003933

1	Drive belt (See DRIVE BELT INSPECTION [MZR-CD (RF Turbo)].) (See DRIVE BELT REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See DRIVE BELT AUTO TENSIONER INSPECTION [MZR-CD (RF Turbo)].)
2	Rocker arm (See VALVE CLEARANCE INSPECTION [MZR-CD (RF Turbo)].) (See VALVE CLEARANCE ADJUSTMENT [MZR-CD (RF Turbo)].)
3	Engine (See COMPRESSION INSPECTION [MZR-CD (RF Turbo)].) (See ENGINE REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See ENGINE DISASSEMBLY/ASSEMBLY [MZR-CD (RF Turbo)].) (See ENGINE TUNE-UP [MZR-CD (RF Turbo)].)
4	Timing belt (See TIMING BELT REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
5	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [MZR-CD (RF Turbo)].)
6	Front oil seal (See FRONT OIL SEAL REPLACEMENT [MZR-CD (RF Turbo)].)
7	Rear oil seal (See REAR OIL SEAL REPLACEMENT [MZR-CD (RF Turbo)].)
