FUEL SYSTEM LOCATION INDEX[LF, L3]

id0114c2800100

Engine Compartment Side

am3zzw00000125

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION[LF, L3].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION[LF, L3].)
3	Fuel pump relay

Fuel Tank Side

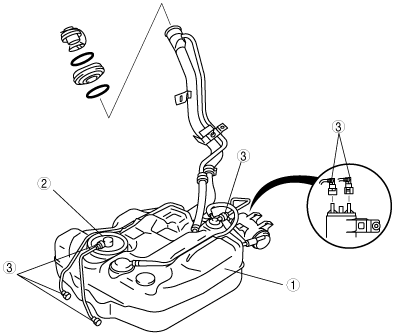

Without the fuel filter (high-pressure)

am3zzw00000126

With the fuel filter (high-pressure)

am3zzw00001767

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION[LF, L3].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION[LF, L3].)
3	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION[LF, L3].)
4	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION[LF, L3].)
