VARIABLE SWIRL SHUTTER VALVE SWITCH INSPECTION [L3 Turbo]

id0140b6803000

Note

•  Before performing the following inspection, make sure to follow the procedure as indicated in the troubleshooting flowchart. (See HOW TO USE THIS MANUAL.)

Voltage Inspection

1.  Turn the ignition switch to the ON position (Engine off).

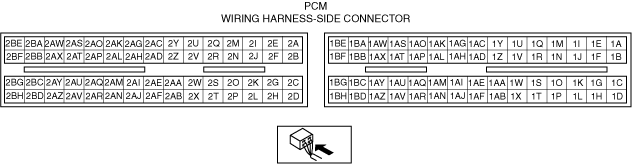

2.  Verify that the PCM terminal 2AE voltage is as shown in the following table when the variable swirl shutter valve actuator rod is depressed and released by hand.

acxuuw00000113

acxuuw00000114

•  If not as specified, perform the “Circuit Open/Short Inspection”.

―  If there is no open or short circuit, replace the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

Circuit Open/Short Inspection

acxuuw00000115

acxuuw00000114

1.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L3 Turbo].)

2.  Inspect the following harnesses for an open or short circuit. (Continuity check)

Open circuit

•  If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

―  Variable swirl shutter valve switch terminal A and PCM terminal 2AE

―  Variable swirl shutter valve switch terminal B and body ground.

Short circuit

•  If there is continuity, there is a short circuit. Repair or replace the wiring harness.

―  Variable swirl shutter valve switch terminal A and power supply

―  Variable swirl shutter valve switch terminal A and body ground

―  Variable swirl shutter valve switch terminal B and power supply
