POWER STEERING PRESSURE (PSP) SWITCH INSPECTION[L3 Turbo]

id0140b6803100

Note

•  Before performing the following inspection, make sure to follow the procedure as indicated in the troubleshooting flowchart. (See HOW TO USE THIS MANUAL.)

Continuity Inspection

1.  Inspect the following if the power steering is inoperative (See POWER STEERING FLUID INSPECTION.):

•  Power steering fluid level

•  Power steering fluid leakage

•  Power steering fluid pressure

2.  Disconnect the PSP switch connector.

3.  Start the engine.

4.  Inspect for continuity between the PSP switch terminal and ground using a tester.

•  If not as specified, replace the PSP switch. (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION[L3 Turbo].)

•  If the PSP switch is normal, but PID value is out of specification, perform the “Circuit Open/Short Inspection”.

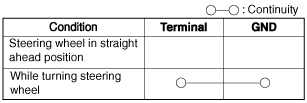

Specification

acxuuw00000116

Circuit Open/Short Inspection

acxuuw00000117

acxuuw00000118

1.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION[L3 Turbo].)

2.  Inspect the following harnesses for an open or short circuit. (Continuity check)

Open circuit

•  If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

―  PSP switch terminal and PCM terminal 2T

Short circuit

•  If there is no continuity, there is a short circuit. Repair or replace the wiring harness.

―  PSP switch terminal and body ground
