A/C UNIT DISASSEMBLY/ASSEMBLY[MANUAL AIR CONDITIONER]

id0711a2800300

1.  Disassemble in the order indicated in the table.

Caution

•  If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

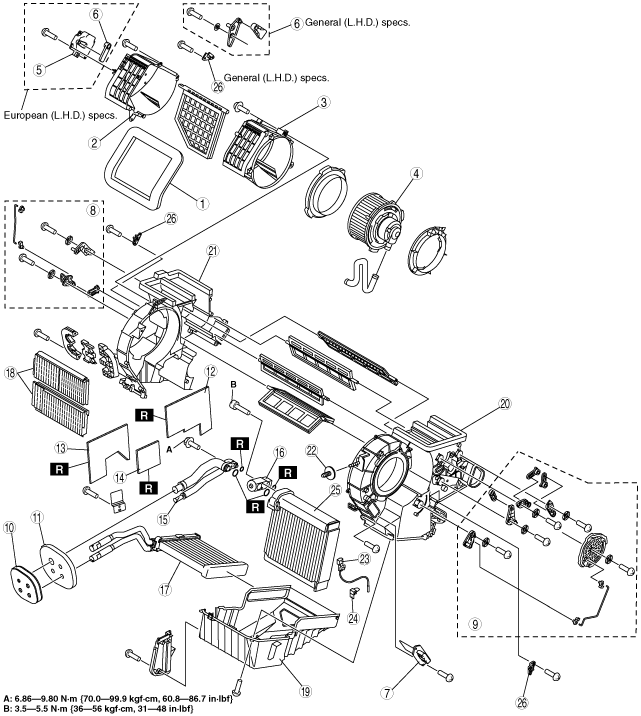

L.H.D.

am3zzw00003340

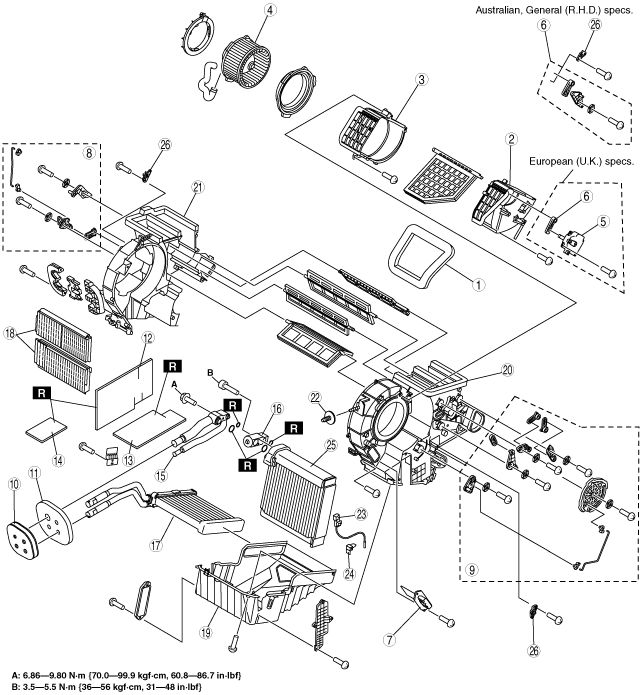

R.H.D.

am3zzw00003341

1	Adhesive polyurethane (1)
2	Blower case (1)
3	Blower case (2)
4	Blower motor
5	Air intake actuator
6	Air intake link set
7	Resistor
8	Air mix link set
9	Airflow mode link set
10	Polyurethane foam (1)
11	Polyurethane foam (2)
12	Adhesive polyurethane (2) (See A/C UNIT DISASSEMBLY/ASSEMBLY[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))].)
13	Adhesive polyurethane (3) (See A/C UNIT DISASSEMBLY/ASSEMBLY[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))].)
14	Adhesive polyurethane (4) (See A/C UNIT DISASSEMBLY/ASSEMBLY[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))].)
15	Evaporator pipe
16	Expansion valve
17	Heater core
18	Air filter (vehicle with air filter)
19	A/C case (3)
20	A/C case (1)
21	A/C case (2)
22	Adjusting bolt
23	Evaporator temperature sensor (See A/C UNIT DISASSEMBLY/ASSEMBLY[FULL-AUTO AIR CONDITIONER].)
24	Sensor clamp (See A/C UNIT DISASSEMBLY/ASSEMBLY[FULL-AUTO AIR CONDITIONER].)
25	Evaporator
26	Wire clamp

2.  Assemble in the reverse order of disassembly.
