BONNET ADJUSTMENT


id091000802400


Gap Adjustment

1.  Remove the following parts:

(1)  Front side turn lights (SeeFRONT SIDE TURN LIGHT REMOVAL/INSTALLATION.)
(2)  Front bumper (SeeFRONT BUMPER REMOVAL/INSTALLATION.)
(3)  Front combination lights (SeeFRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
(4)  Front fender panel (SeeFRONT FENDER PANEL REMOVAL/INSTALLATION.)

2.  Loosen the bonnet hinge installation bolts and adjust the bonnet.

am3zzw00002233

3.  Tighten the bolts.

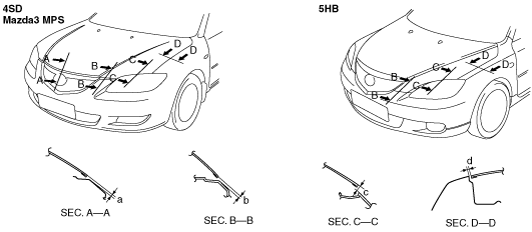

4.  Verify that the gap between the bonnet and the body is within the specification.

am3zzw00002234

Standard clearance
a: 0.2—3.8 mm {0.0079—0.14 in}
b: –1.0—3.0 mm {–0.039—0.11 in} (4SD) (Mazda3 MPS)
b: –1.5—2.5 mm {–0.059—0.098 in} (5HB)
c: –0.5—2.5 mm {–0.019—0.098 in} (4SD) (Mazda3 MPS)
c: –1.0—2.0 mm {–0.039—0.078 in} (5HB)
d: 2.5—4.5 mm {0.10—0.17 in}


Height Difference Adjustment

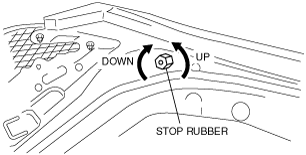

1.  Turn the stop rubber to adjust the height of the bonnet.

am3zzw00002235
am3zzw00002236

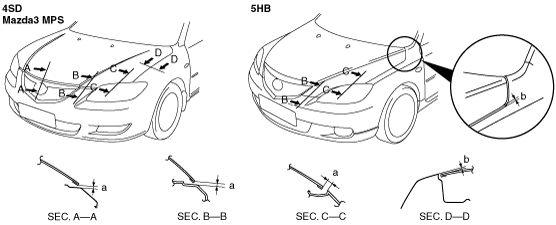

2.  Verify that the height difference between the bonnet and the body is within the specification.

am3zzw00002237

Standard clearance
a: 3.0—6.0 mm {0.12—0.23 in}
b: –1.5—0.5 mm {–0.059—0.019 in}
