WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

id091900800200

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (Driver’s side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (Driver’s side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(4)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

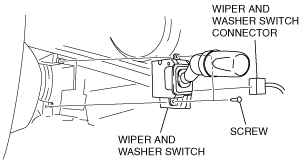

3.  Disconnect the wiper and washer switch connector.

am3zzw00002102

4.  Remove the screws, then remove the wiper and washer switch.

5.  Install in the reverse order of removal.
