FUEL SYSTEM LOCATION INDEX [MZR 1.6]

id0114f4800100

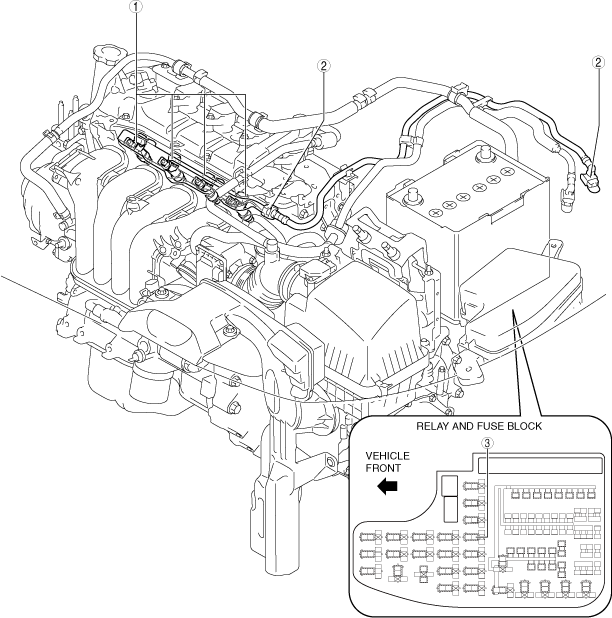

Engine Compartment Side

am3zzw00018638

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 1.6].) (See FUEL INJECTOR INSPECTION [MZR 1.6].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 1.6].)
3	Fuel pump relay (See RELAY INSPECTION.)

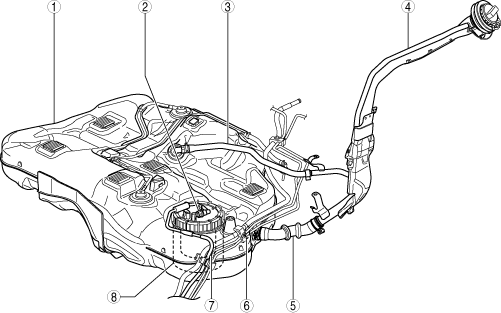

Fuel Tank Side

am3zzw00018959

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZR 1.6].) (See FUEL TANK INSPECTION [MZR 1.6].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 1.6].)
3	Breather hose (See FUEL TANK REMOVAL/INSTALLATION [MZR 1.6].)
4	Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [MZR 1.6].)
5	Joint hose (See FUEL TANK REMOVAL/INSTALLATION [MZR 1.6].)
6	Non-return valve (See FUEL TANK REMOVAL/INSTALLATION [MZR 1.6].) (See NON-RETURN VALVE INSPECTION [MZR 1.6].)
7	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [MZR 1.6].)
8	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [MZR 1.6].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [MZR 1.6].) (See FUEL PUMP UNIT INSPECTION [MZR 1.6].)
