FUEL-FILLER PIPE REMOVAL/INSTALLATION [MZR 1.6]

id0114f4806900

Warning
•  Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the “Fuel Line Safety Procedure” to prevent the fuel from spraying.
―  Fuel may cause irritation if it comes in contact with skin and eyes.
―  If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.
Caution
•  Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.

1.  Level the vehicle.

2.  Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [MZR 1.6].)

3.  Drain the fuel.

4.  Open the fuel-filler lid.

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

7.  Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [MZR 1.6].)

am3uuw00012210

1
Fuel-filler cap
2
Dust cover
(See Dust Cover Removal Note.)
3
Breather hose
(See Breather Hose Installation Note.)
4
Joint hose
(See Joint Hose Installation Note.)
5
Fuel-filler pipe
(See Fuel-filler Pipe Removal Note.)
6
Fuel-filler pipe protector


Dust Cover Removal Note

1.  Remove the rear mudguard (LH). (See MUDGUARD REMOVAL/INSTALLATION.)

2.  Release the dust cover tab using a flathead screwdriver as shown in the figure.

am3uuw00012211

3.  Remove the dust cover.


Fuel-filler Pipe Removal Note

1.  Remove the rear tire (LH). (See WHEEL AND TIRE SPECIFICATION.)

2.  Remove the rear crossmember. (See REAR CROSSMEMBER REMOVAL/INSTALLATION.)

3.  Remove the fuel-filler pipe.

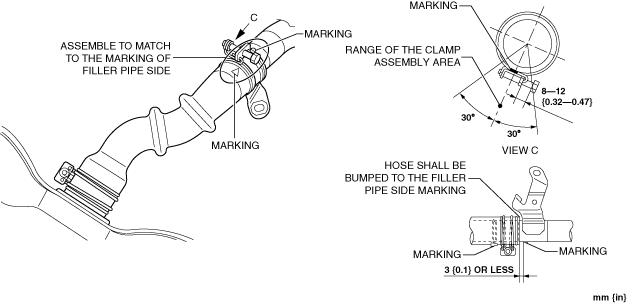

Joint Hose Installation Note

1.  Install the joint hose as shown in the figure.

am3zzw00018965


Breather Hose Installation Note

1.  Install the breather hose as shown in the figure.

am3zzw00017407
