EXHAUST SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0115zc125800

Purpose, Outline

• A high compression ratio has been realized by adopting 4-2-1 exhaust pipes and reducing residual gas in the cylinders.

• The loop structure of the exhaust pipes for the 4-2-1 system takes up less space.

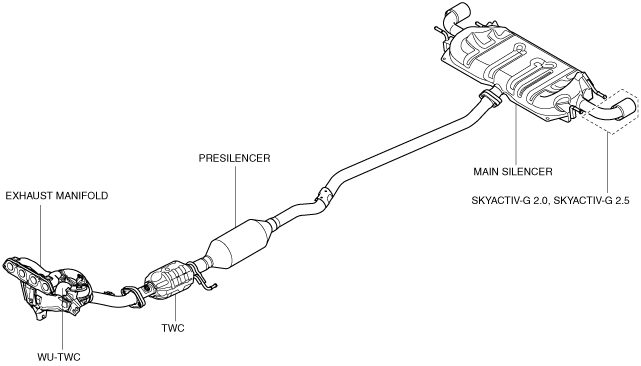

Structural View

am3zzn00003666

System Diagram

ac5uun00000069

Structure

• The exhaust system consists of the following parts:

Part name	Reference
Main silencer	(See MAIN SILENCER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Presilencer	(See PRESILENCER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
TWC	(See CATALYTIC CONVERTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
WU-TWC
Exhaust manifold	(See EXHAUST MANIFOLD [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
