WHEEL HUB COMPONENT REMOVAL/INSTALLATION

id031200800400

Caution

•  Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

1.  Perform the following procedure for vehicles with the electric parking brake.

(1)  Switch the ignition ON (engine off).

(2)  Release the electric parking brake.

(3)  Switch the ignition off.

(4)  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

3.  When working on the left side of the vehicle, remove the auto leveling sensor from the rear lower arm. (With headlight auto leveling system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)

4.  Disconnect the rear ABS wheel-speed sensor wiring harness installed to the wheel hub and set it aside. (Without electric parking brake)

am3zzw00018046

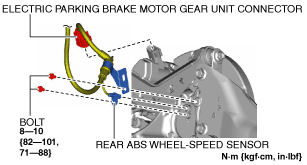

5.  Disconnect the rear ABS wheel-speed sensor wiring harness and the electric parking brake motor gear unit connector and set it aside so that it does not interfere with the servicing. (With electric parking brake)

am3zzw00018047

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal. (See Suspension Links Installation Note.)

8.  When the hub support, hub support bushing (front), or hub support bushing (rear) is replaced, inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT.)

9.  When the auto leveling sensor link is disconnected, perform the headlight auto leveling system initial setting. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)

am3zzw00018048

1	Brake hose clip
2	Brake caliper component (See Brake Caliper Component Removal Note.)
3	Disc plate
4	Bolt (wheel hub)
5	Wheel hub
6	Dust cover
7	Dynamic damper (With dynamic damper)
8	Rear stabilizer control link lower nut
9	Rear lower arm outer bolt (See Rear Lower Arm Outer Bolt Removal Note.)
10	Rear coil spring (See REAR COIL SPRING REMOVAL/INSTALLATION.)
11	Rear shock absorber lower nut (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION.)
12	Stud bolt (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION.)
13	Protector (With protector) (See REAR LATERAL LINK REMOVAL/INSTALLATION.)
14	Rear lateral link outer nut (See REAR LATERAL LINK REMOVAL/INSTALLATION.)
15	Rear trailing link installation bolt (See REAR TRAILING LINK REMOVAL/INSTALLATION.)
16	Rear upper arm outer nut (See REAR UPPER ARM REMOVAL/INSTALLATION.)
17	Hub support
18	Wheel hub bolt (See Wheel Hub Bolt Removal Note.) (See Wheel Hub Bolt Installation Note.)
19	Hub support bushing (front) (See Hub Support Bushing (Front) Removal Note.) (See Hub Support Bushing (Front) Installation Note.)
20	Hub support bushing (rear) (See Hub Support Bushing (Rear) Removal Note.) (See Hub Support Bushing (Rear) Installation Note.)

Brake Caliper Component Removal Note

1.  Remove the brake caliper component from the trailing link and suspend it out of the way using a cable.

Rear Lower Arm Outer Bolt Removal Note

1.  Support the rear lower arm using a jack.

am3uuw00009882

2.  Remove the rear lower arm outer bolt.

Wheel Hub Bolt Removal Note

Note

•  Remove the wheel hub bolt only if there is any malfunction.

1.  Remove the wheel hub bolt using a press.

am3uuw00009883

Hub Support Bushing (Front) Removal Note

1.  Mark the hub support as shown in the figure.

am3uuw00009884

2.  Press the rear hub support bushing (front) out using the SSTs.

am3uuw00009885

Hub Support Bushing (Rear) Removal Note

1.  Mark the hub support as shown in the figure.

am3uuw00009886

2.  Press the rear hub support bushing (rear) out using the SSTs.

am3uuw00009887

Suspension Links Installation Note

1.  When installing the joint sections with rubber bushings, perform the following procedures.

(1)  Temporarily tighten the bolts, stud bolt, and nuts with the vehicle lifted up.

(2)  Lower the vehicle to the ground and tighten the bolts, stud bolt, and nuts to the specified torque.

Hub Support Bushing (Rear) Installation Note

1.  Align the projection of the bushing with the hub support marking and set a new bushing to the hub support.

am3uuw00009888

2.  Install a new hub support bushing (rear) using the SSTs.

am3uuw00009889

Hub Support Bushing (Front) Installation Note

1.  Align the projection of the bushing with the hub support marking and set a new bushing to the hub support.

am3uuw00009890

2.  Install a new hub support bushing (front) using the SSTs.

am3uuw00009891

Wheel Hub Bolt Installation Note

1.  Install the new wheel hub bolt using a press.

am3uuw00009892
