REAR HEAT DUCT REMOVAL/INSTALLATION

id071100800900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Slide the front seat rearward.

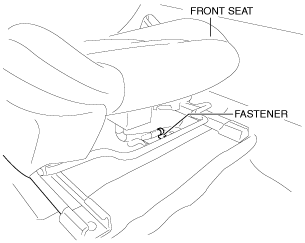

3.  Remove the fastener.

am6xuw00006103

4.  Remove the following parts:

(1)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(2)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(5)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(6)  Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZR 1.6].)(See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)(See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

5.  Turn the floor covering over.

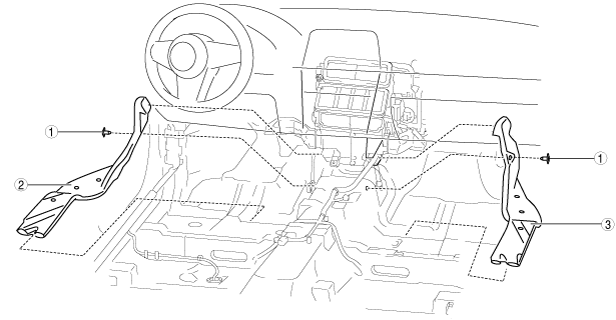

6.  Remove in the order indicated in the table.

ac5uuw00001165

1	Fastener
2	Rear heat duct (1)
3	Rear heat duct (2)

7.  Install in the reverse order of removal.
