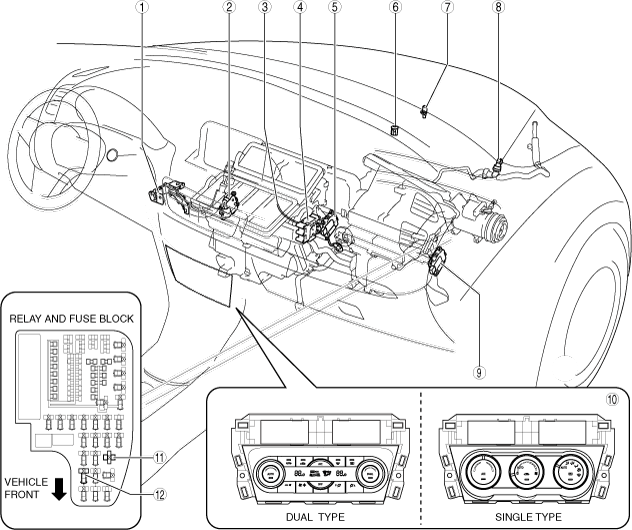

HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]
id0740a1803600
am3zzw00019111
|
|
1
|
Cabin temperature sensor
|
|
2
|
Driver-side air mix actuator (with dual type climate control unit)
|
|
3
|
Evaporator temperature sensor
|
|
4
|
Airflow mode actuator
|
|
5
|
Passenger-side air mix actuator (with dual type climate control unit)
|
|
Air mix actuator (with single type climate control unit)
|
|
|
6
|
Solar radiation sensor
|
|
7
|
Ambient temperature sensor
|
|
8
|
Refrigerant pressure sensor
|
|
9
|
Air intake actuator
|
|
10
|
Climate control unit
|
|
11
|
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
|
|
12
|
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
|
