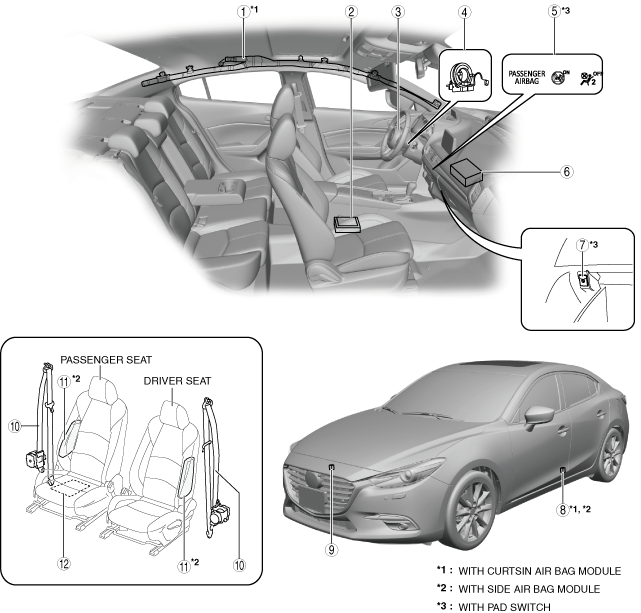

AIR BAG SYSTEM LOCATION INDEX

id081000805300

am3zzw00018741

1	Curtain air bag module (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
2	SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION.) (See SAS CONTROL MODULE CONNECTOR COVER REMOVAL/INSTALLATION.) (See SAS CONTROL MODULE CONFIGURATION (USING READ/WRITE FUNCTION).) (See SAS CONTROL MODULE CONFIGURATION (USING AS-BUILT DATA).)
3	Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL.) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
4	Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.) (See CLOCK SPRING ADJUSTMENT.) (See CLOCK SPRING INSPECTION.)
5	Passenger air bag deactivation (PAD) indicator (See INDICATOR UNIT REMOVAL/INSTALLATION.) (See INDICATOR UNIT INSPECTION.)
6	Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL.) (See PASSENGER-SIDE AIR BAG MODULE INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
7	Passenger air bag deactivation (PAD) switch (See PASSENGER AIR BAG DEACTIVATION (PAD) SWITCH REMOVAL/INSTALLATION.) (See PASSENGER AIR BAG DEACTIVATION (PAD) SWITCH INSPECTION.)
8	Side air bag sensor (See SIDE AIR BAG SENSOR REMOVAL/INSTALLATION.)
9	Crash zone sensor (See CRASH ZONE SENSOR REMOVAL/INSTALLATION.)
10	Pre-tensioner seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
11	Side air bag module (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
12	Occupancy sensor (See OCCUPANCY SENSOR INSPECTION.)
