UPPER PANEL DISASSEMBLY/ASSEMBLY
id091700607100
Without Electric Parking Brake
1. The upper panel cannot be disassembled on vehicles without the electric parking brake. When replacing the upper panel, refer to the UPPER PANEL REMOVAL and UPPER PANEL INSTALLATION. (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)
With Electric Parking Brake

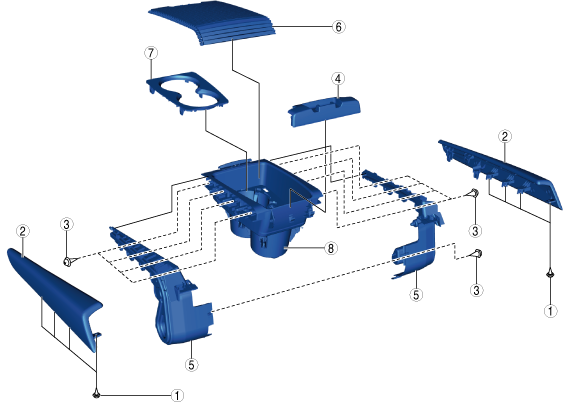

1. Disassemble in the order indicated in the table.
am3zzw00018558
|
|
1
|
Screw
|
|
2
|
Console bracket
|
|
3
|
Screw
|
|
4
|
Panel up
|
|
5
|
Rail
|
|
6
|
Shutter
|
|
7
|
Console cover
|
|
8
|
Console box
|
2. Assemble in the reverse order of disassembly.
