B-PILLAR UPPER TRIM REMOVAL/INSTALLATION

id091700802100

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(4)  Adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(5)  Upper anchor installation bolts on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

2.  Partially peel back the seaming welt.

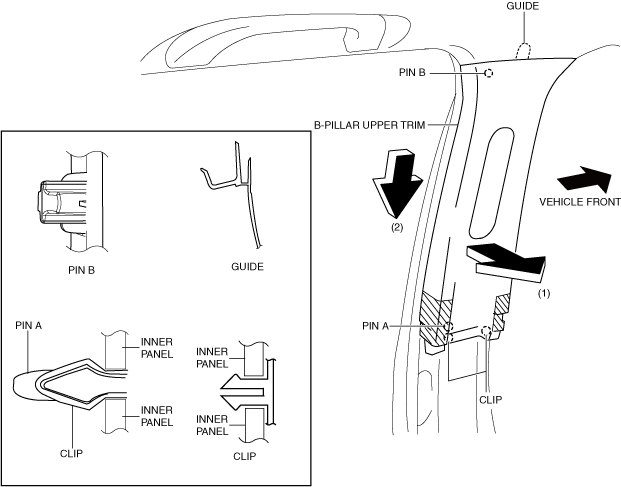

3.  Grasp the shaded areas shown in the figure, and pull the B-pillar upper trim in the direction of the arrow (1) while detaching the clips, pin A and pin B.

Caution

•  If the clips, pin A and pin B are removed forcefully, the guide may be damaged. Carefully remove the clips, pin A and pin B so as not to damage the guide.

am3zzw00018599

4.  Remove the B-pillar upper trim in the direction of the arrow (2) shown in the figure while detaching the guide.

5.  Install in the reverse order of removal.
