SHIFT PANEL REMOVAL/INSTALLATION


id091700898400


Without Electric Parking Brake


ATX

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the upper panel. (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

3.  Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

am3ccw00001659

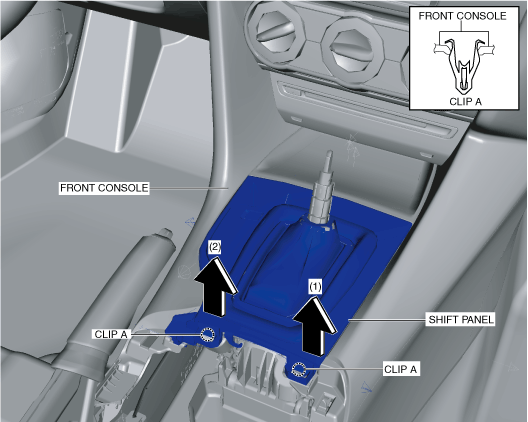

5.  Move the shift panel in the order of the arrows (1) and (2) shown in the figure, and remove the clips A.

am3zzw00020757

6.  To prevent scratches or damage, affix protective tape to the position shown in the figure of the front console.

am3zzw00018240

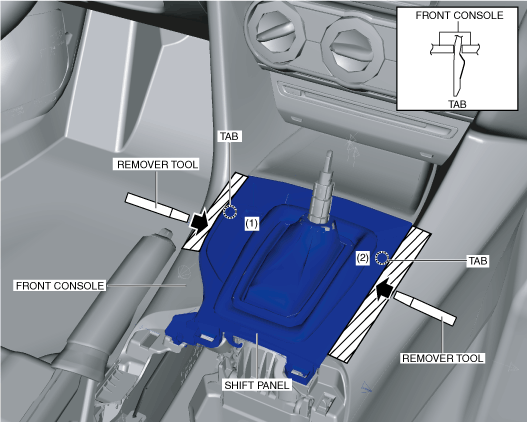

7.  Insert the remover tool in the order of the arrows (1) and (2) shown in the figure, and detach the shift panel tabs from the front console.

am3zzw00018241

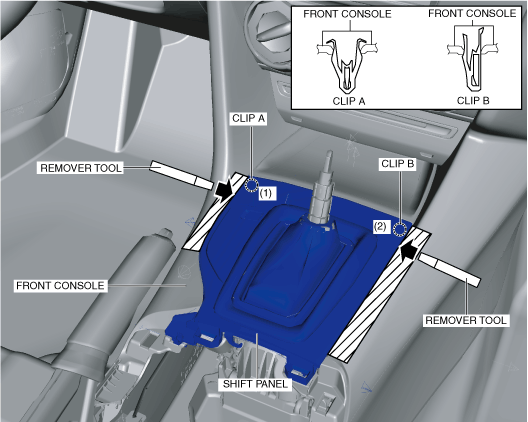

8.  Insert the remover tool in the order of the arrows (1) and (2) shown in the figure, and detach the clip A and clip B of the shift panel from the front console.

am3zzw00018242

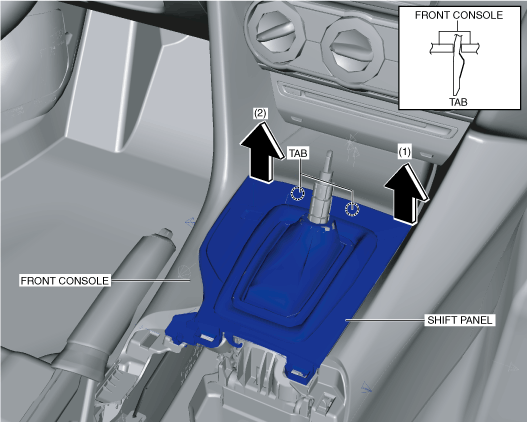

9.  Move the shift panel in the order of the arrows (1) and (2) shown in the figure, and remove it while detaching the shift panel tabs from the front console.

am3zzw00018243

10.  Install in the reverse order of removal.


MTX

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the upper panel. (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

3.  Remove the shift lever knob. (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

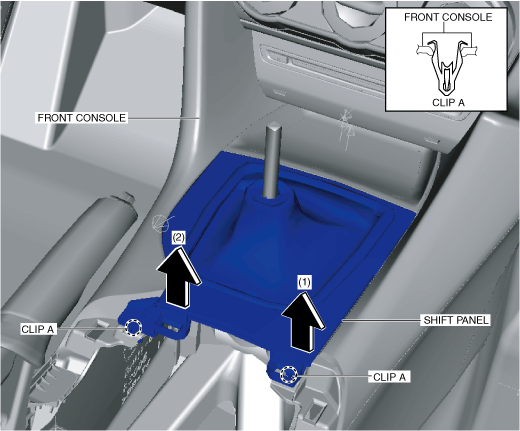

4.  Move the shift panel in the order of the arrows (1) and (2) shown in the figure, and remove the clips A.

am3zzw00018244

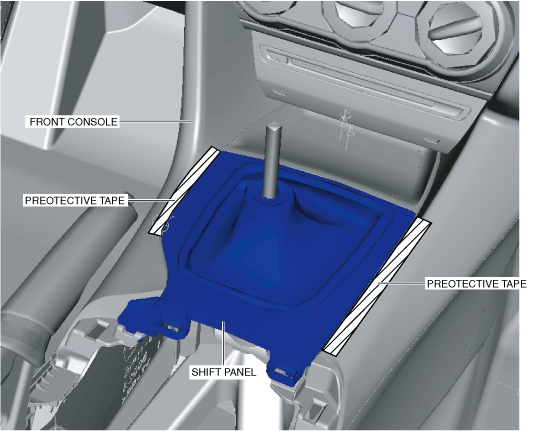

5.  To prevent scratches or damage, affix protective tape to the position shown in the figure of the front console.

am3zzw00020758

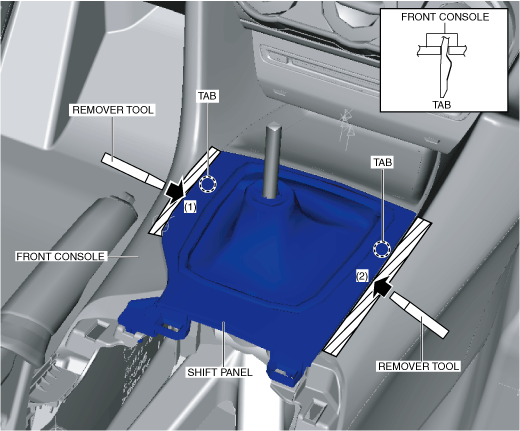

6.  Insert the remover tool in the order of the arrows (1) and (2) shown in the figure, and detach the tabs of the shift panel from the front console.

am3zzw00018246

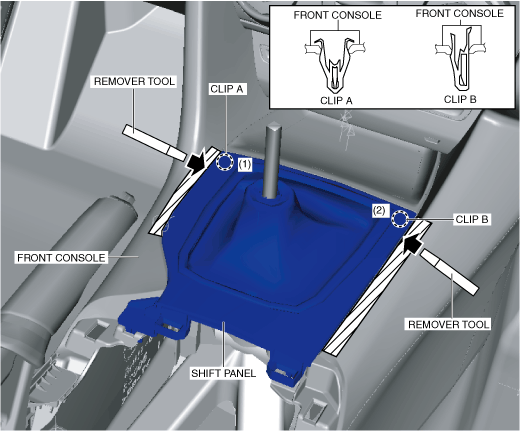

7.  Insert the remover tool in the order of the arrows (1) and (2) shown in the figure, and detach the clip A and clip B of the shift panel from the front console.

am3zzw00018247

8.  Move the shift panel in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the shift panel tabs from the front console.

am3zzw00018248

9.  Install in the reverse order of removal.


With Electric Parking Brake


ATX

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the upper panel. (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

3.  Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

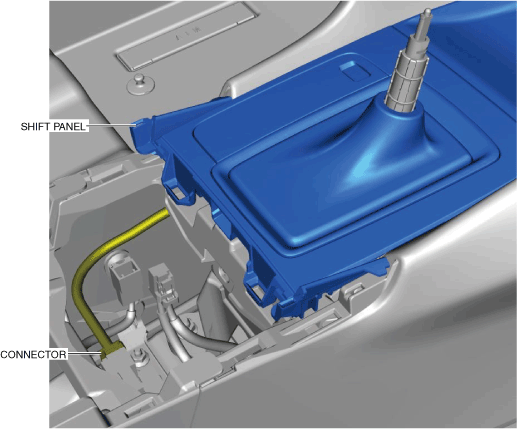

4.  Disconnect the connector.

am3zzw00018249

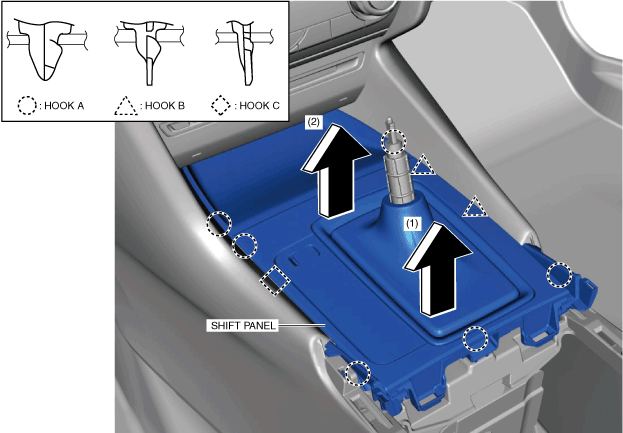

5.  Move the shift panel in the direction of the arrows in the order of (1) and (2) while detaching the hooks A, hooks B and hook C.

am3zzw00018250

6.  Remove the shift panel in the direction of the arrow shown in the figure while detaching the guides.

am3zzw00018255

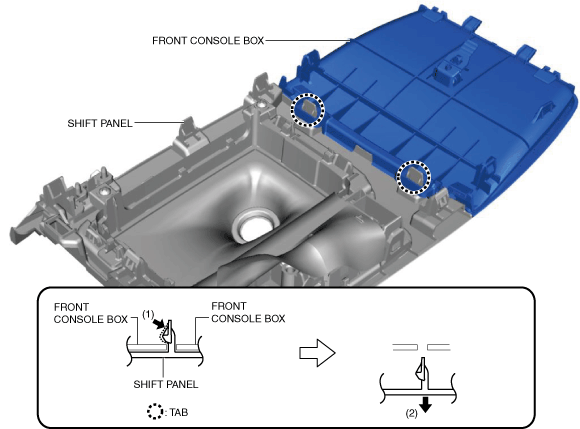

7.  While pressing the tabs in the directions of the arrow (1) shown in the figure, press up the tabs in the direction of the arrow (2) and detach the tabs from the front console box.

am3zzw00018252

8.  Install in the reverse order of removal.


MTX

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the upper panel. (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

3.  Remove the shift lever knob. (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

4.  Move the shift panel in the direction of the arrows in the order of (1) and (2) while detaching the hooks A, hooks B and hook C.

am3zzw00020759

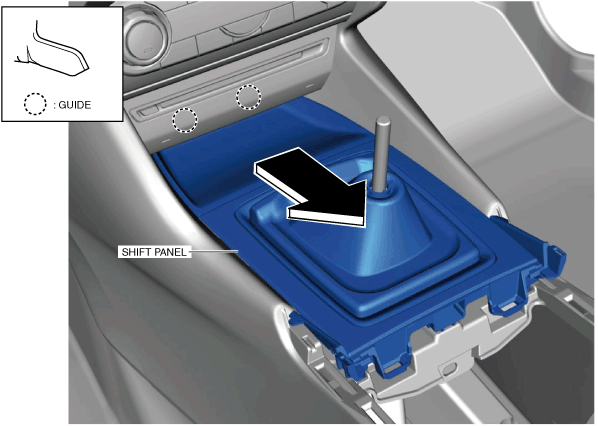

5.  Remove the shift panel in the direction of the arrow shown in the figure while detaching the guides.

am3zzw00018251

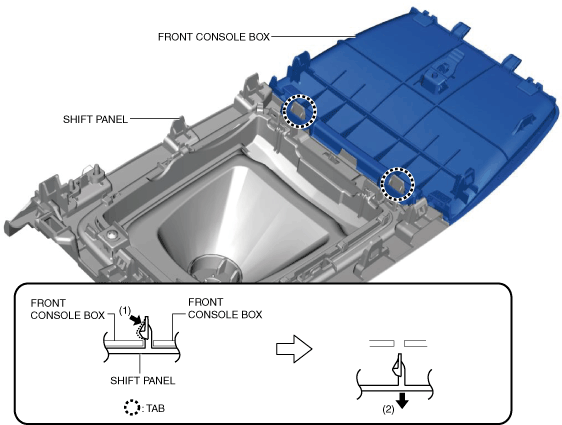

6.  While pressing the tabs in the directions of the arrow (1) shown in the figure, press up the tabs in the direction of the arrow (2) and detach the tabs from the front console box.

am3zzw00018254

7.  Install in the reverse order of removal.
