REAR CONSOLE REMOVAL/INSTALLATION

id091700898500

Without Electric Parking Brake

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Open the rear console lid and remove the storage box.

am3zzw00018727

3.  Remove the upper panel. (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

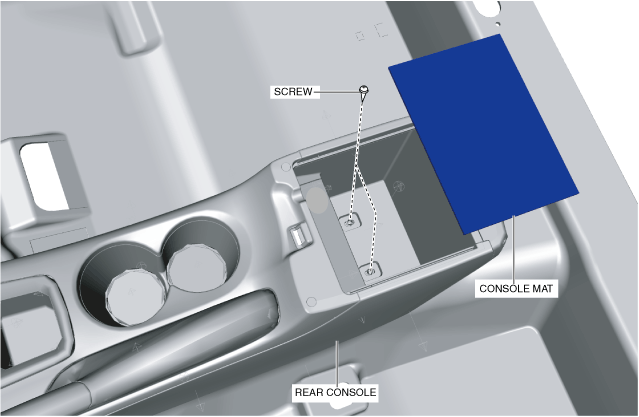

4.  Remove the console mat and remove the screws.

am3zzw00018728

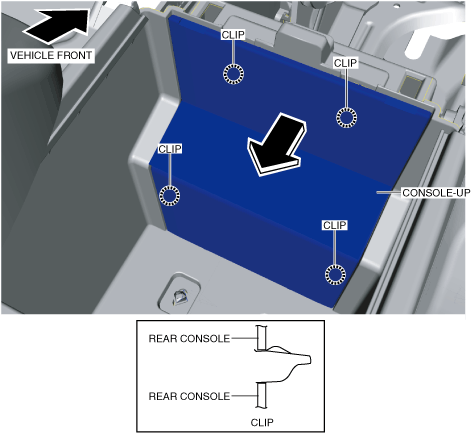

5.  Move the console-up in the direction of the arrow shown in the figure and detach the clips from the rear console.

am3zzw00020760

6.  Disconnect the auxiliary jack/USB port connector. (without center display and with CD player)

7.  Disconnect the SD card slot hub connector. (with center display and with CD player or DVD/CD player)

8.  Disconnect the center accessory socket connector.

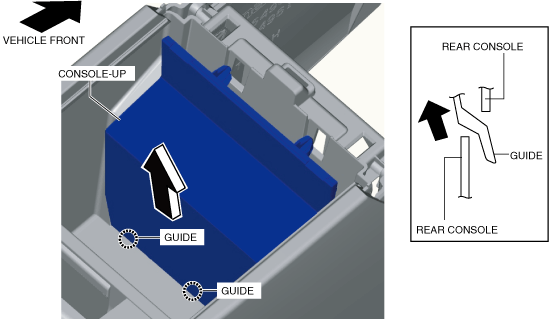

9.  Move the console-up in the direction of the arrow shown in the figure and pull the guides out of the rear console.

am3zzw00020761

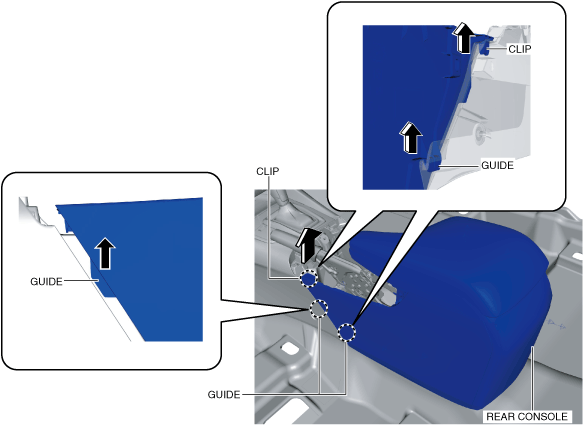

10.  Move the rear console in the direction of the arrow shown in the figure and detach the clip and guides from the front console.

am3zzw00018257

11.  Remove the wiring harness clips from the rear console.

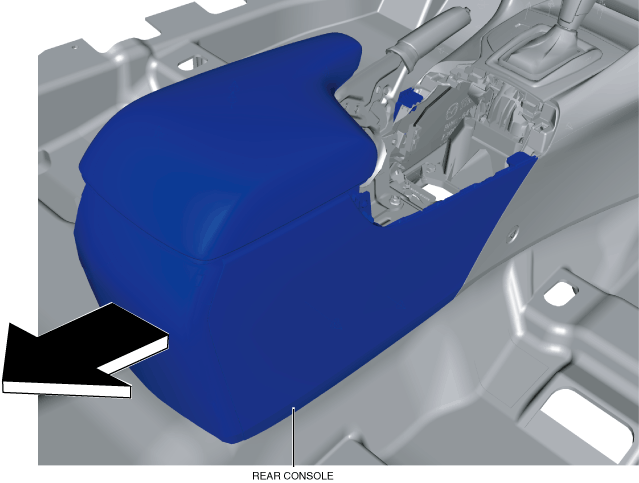

12.  Remove the rear console in the direction of the arrow shown in the figure.

am3zzw00018731

13.  Install in the reverse order of removal.

With Electric Parking Brake

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Open the rear console lid and remove the storage box.

am3zzw00018259

3.  Remove the upper panel. (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

4.  Remove the console mat and remove the screws.

am3zzw00018260

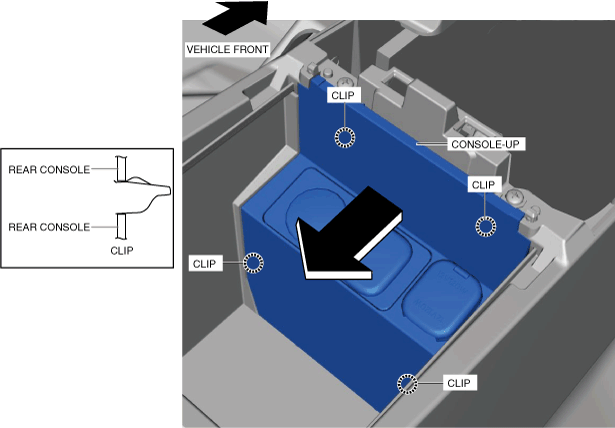

5.  Move the console-up in the direction of the arrow shown in the figure and detach the clips from the rear console.

am3zzw00018261

6.  Disconnect the auxiliary jack/USB port connector. (without center display and with CD player)

7.  Disconnect the SD card slot hub connector. (with center display and with CD player or DVD/CD player)

8.  Disconnect the center accessory socket connector.

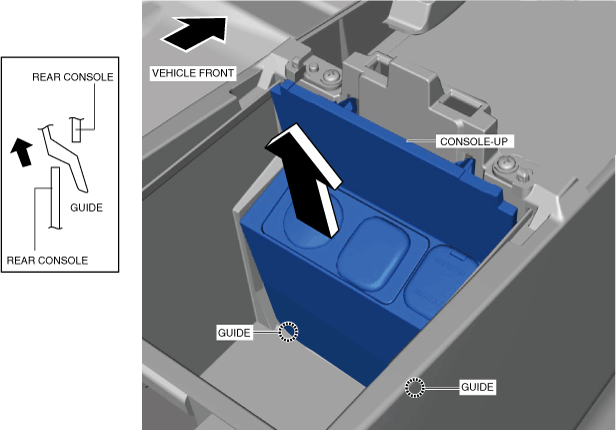

9.  Move the console-up in the direction of the arrow shown in the figure and pull the guides out of the rear console.

am3zzw00018262

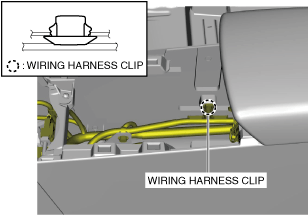

10.  Remove the wiring harness clip.

am3zzw00018263

11.  Remove the screws.

am3zzw00018264

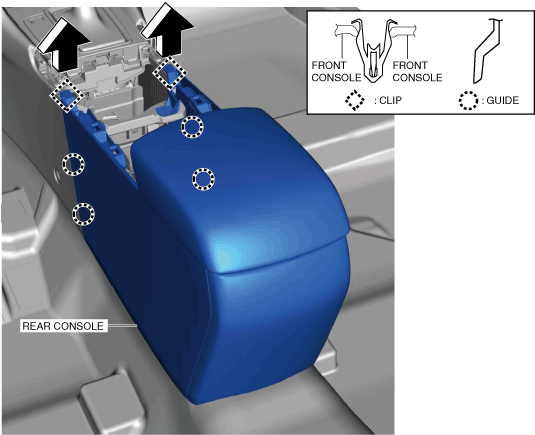

12.  Move the rear console in the direction of the arrow shown in the figure and detach the clips and the guides from the front console.

am3zzw00018265

13.  Remove the rear console in the direction of the arrow shown in the figure.

am3zzw00018266

14.  Install in the reverse order of removal.
