FRONT TURN LIGHT REMOVAL/INSTALLATION

id091800804300

1.  Switch the ignition ON (engine off or on).

2.  Fully turn the steering wheel in the opposite direction of the side the front turn light is being removed.

3.  Switch the ignition off.

4.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

5.  Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

6.  Remove the front fog light and the bracket as a single unit. (with front fog light) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)

7.  Remove the screws. (without front fog light)

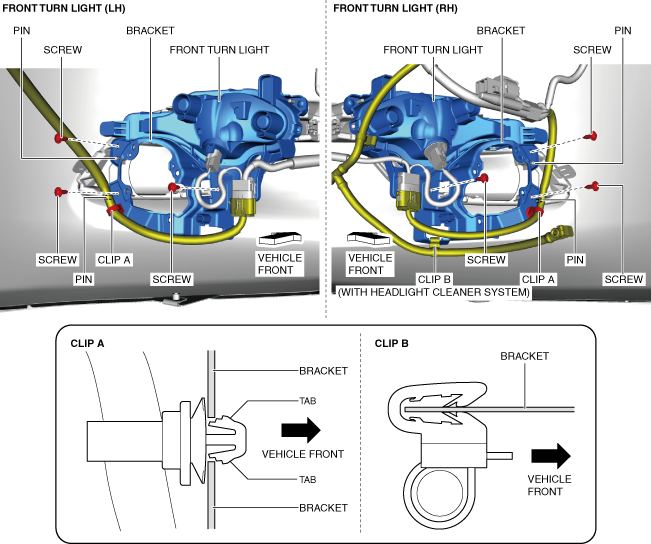

aaxjjw00020364

8.  Remove the clips. (without front fog light)

9.  Remove the bracket. (without front fog light)

10.  Disconnect the connector.

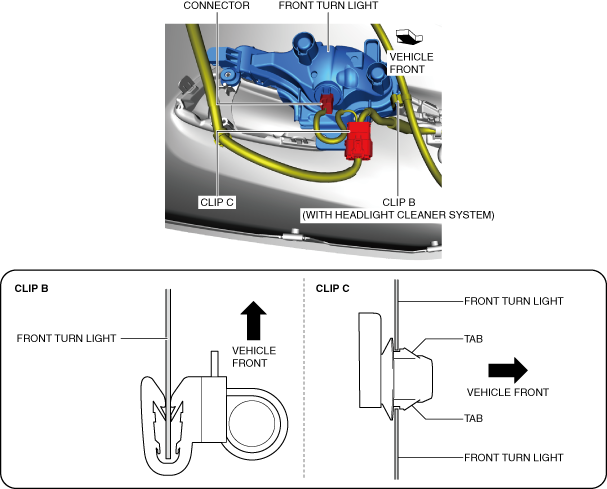

aaxjjw00020365

11.  Remove the clips.

12.  Remove the screw.

aaxjjw00020366

13.  Remove the front turn light.

14.  Install in the reverse order of removal.
