DETERMINING SHORT BETWEEN CIRCUITS LOCATION (HS-CAN) [SKYACTIV-G 1.5/2.0/2.5, SKYACTIV-D 1.5 (MTX), SKYACTIV-D 2.2 (MTX) (R.H.D.)]

id100233000800

Caution

•  Perform the following malfunction diagnosis only when it is diagnosed with a short between circuits by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 1.5/2.0/2.5, SKYACTIV-D 1.5 (MTX), SKYACTIV-D 2.2 (MTX) (R.H.D.)].)

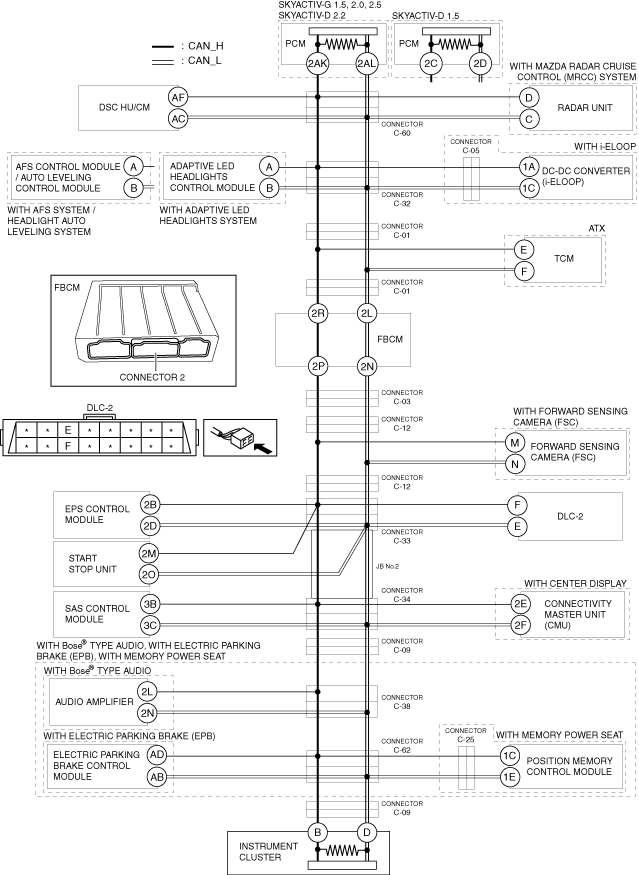

System wiring diagram

am3zzw00019070

Determination Procedure

Caution

•  When disconnecting the connector, verify that there is no looseness, damage, deformation, corrosion, or poor connection of the connector terminals.

•  When inspecting the DLC-2, touch it with a paper clip or similar thin pin without directly inserting a tester into the terminals.

•  Disconnect the negative battery cable before performing any work that requires handling of connectors.

Note

•  If the ignition does not turn on even if the ignition is switched ON, switch the ignition ON referring to the forced ignition ON procedure. (See FORCED IGNITION ON.)

Step	Inspection		Action
1	INSPECT BETWEEN FRONT BODY CONTROL MODULE (FBCM) AND INSTRUMENT CLUSTER FOR SHORT BETWEEN CIRCUITS •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Disconnect connector 2 which has front body control module (FBCM) terminals 2R and 2L. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminals F and E. •  Is the voltage at DLC-2 terminals F and E the same?	Yes	Go to Step 17.
		No	Go to the next step.
2	INSPECT FRONT BODY CONTROL MODULE (FBCM) FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Inspect for continuity between front body control module (FBCM) terminals 2R and 2L. •  Is there continuity?	Yes	Replace the front body control module (FBCM) because there is a short between circuits in the front body control module (FBCM). (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION.)
		No	Go to the next step.
3	INSPECT BETWEEN CONNECTOR C-01 AND FRONT BODY CONTROL MODULE (FBCM) FOR SHORT BETWEEN CIRCUITS •  Disconnect connector C-01. •  Connect connector 2 which has front body control module (FBCM) terminals 2R and 2L. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminals F and E. •  Is the voltage at DLC-2 terminals F and E the same?	Yes	Repair or replace the wiring harness between connector C-01 and front body control module (FBCM) because the wiring harness is shorted between circuits.
		No	Go to the next step.
4	INSPECT BETWEEN TCM AND CONNECTOR C-01 FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Inspect for continuity between TCM terminals E and F. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 6.
5	INSPECT TCM FOR SHORT BETWEEN CIRCUITS •  Disconnect the TCM connector. •  Inspect for continuity between TCM terminals E and F (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the TCM and connector C-01 because the wiring harness is shorted between circuits.
		No	Replace the TCM because there is a short between circuits in the TCM. (See CONTROL VALVE BODY REMOVAL/INSTALLATION [FN4A-EL].) (See CONTROL VALVE BODY REMOVAL/INSTALLATION [FW6A-EL].) (See CONTROL VALVE BODY REMOVAL/INSTALLATION [GW6A-EL].) (See CONTROL VALVE BODY REMOVAL/INSTALLATION [CW6A-EL].) (See CONTROL VALVE BODY REMOVAL/INSTALLATION [EW6A-EL].)
6	INSPECT BETWEEN CONNECTOR C-01 AND CONNECTOR C-32 FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Disconnect connector C-32. •  Connect connector C-01. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminals F and E. •  Is the voltage at DLC-2 terminals F and E the same?	Yes	Repair or replace the wiring harness between connector C-01 and connector C-32 because the wiring harness is shorted between circuits.
		No	Go to the next step.
7	INSPECT BETWEEN AFS CONTROL MODULE / AUTO LEVELING CONTROL MODULE OR ADAPTIVE LED HEADLIGHTS CONTROL MODULE AND CONNECTOR C-32 FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Inspect for continuity between AFS control module / auto leveling control module or adaptive LED headlights control module terminals A and B. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 9.
8	INSPECT AFS CONTROL MODULE / AUTO LEVELING CONTROL MODULE OR ADAPTIVE LED HEADLIGHTS CONTROL MODULE FOR SHORT BETWEEN CIRCUITS •  Disconnect the AFS control module / auto leveling control module or adaptive LED headlights control module connector. •  Inspect for continuity between AFS control module / auto leveling control module or adaptive LED headlights control module terminals A and B (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the AFS control module / auto leveling control module or adaptive LED headlights control module and connector C-32 because the wiring harness is shorted between circuits.
		No	Replace the AFS control module / auto leveling control module or adaptive LED headlights control module because there is a short between circuits in the AFS control module / auto leveling control module or adaptive LED headlights control module. (See ADAPTIVE LED HEADLIGHTS CONTROL MODULE REMOVAL/INSTALLATION.) (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION.) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION.)
9	INSPECT BETWEEN DC-DC CONVERTER (i-ELOOP) AND CONNECTOR C-32 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between DC-DC converter (i-ELOOP) terminals 1A and 1C. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 12.
10	INSPECT BETWEEN DC-DC CONVERTER (i-ELOOP) AND CONNECTOR C-05 FOR SHORT BETWEEN CIRCUITS •  Disconnect connector C-05. •  Inspect for continuity between DC-DC converter (i-ELOOP) terminals 1A and 1C. •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connector C-32 and connector C-05 because the wiring harness is shorted between circuits.
11	INSPECT DC-DC CONVERTER (i-ELOOP) FOR SHORT BETWEEN CIRCUITS •  Disconnect the DC-DC converter (i-ELOOP) connector. •  Inspect for continuity between DC-DC converter (i-ELOOP) terminals 1A and 1C (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the DC-DC converter (i-ELOOP) and connector C-05 because the wiring harness is shorted between circuits.
		No	Replace the DC-DC converter (i-ELOOP) because there is a short between circuits in the DC-DC converter (i-ELOOP). (See DC-DC CONVERTER (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP].)
12	INSPECT BETWEEN CONNECTOR C-60 AND CONNECTOR C-32 FOR SHORT BETWEEN CIRCUITS •  Disconnect connector C-60. •  Connect connector C-32. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminals F and E. •  Is the voltage at DLC-2 terminals F and E the same?	Yes	Repair or replace the wiring harness between connector C-60 and connector C-32 because the wiring harness is shorted between circuits.
		No	Go to the next step.
13	INSPECT BETWEEN DSC HU/CM AND CONNECTOR C-60 FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Inspect for continuity between DSC HU/CM terminals AF and AC. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 15.
14	INSPECT DSC HU/CM FOR SHORT BETWEEN CIRCUITS •  Disconnect the DSC HU/CM connector. •  Inspect for continuity between DSC HU/CM terminals AF and AC (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the DSC HU/CM and connector C-60 because the wiring harness is shorted between circuits.
		No	Replace the DSC HU/CM because there is a short between circuits in the DSC HU/CM. (See DSC HU/CM REMOVAL/INSTALLATION.)
15	INSPECT BETWEEN RADAR UNIT AND CONNECTOR C-60 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between radar unit terminals D and C. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 44.
16	INSPECT RADAR UNIT FOR SHORT BETWEEN CIRCUITS •  Disconnect the radar unit connector. •  Inspect for continuity between radar unit terminals D and C (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the radar unit and connector C-60 because the wiring harness is shorted between circuits.
		No	Replace the radar unit because there is a short between circuits in the radar unit. (See RADAR UNIT REMOVAL/INSTALLATION.)
17	INSPECT BETWEEN CONNECTOR C-03 AND INSTRUMENT CLUSTER FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Disconnect connector C-03. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminals F and E. •  Is the voltage at DLC-2 terminals F and E the same?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between front body control module (FBCM) and connector C-03 because the wiring harness is shorted between circuits.
18	INSPECT BETWEEN CONNECTOR C-12 AND INSTRUMENT CLUSTER FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Disconnect connector C-12. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Switch the ignition ON (engine off). •  Measure the voltage at DLC-2 terminals F and E. •  Is the voltage at DLC-2 terminals F and E the same?	Yes	Go to Step 21.
		No	Go to the next step.
19	INSPECT BETWEEN FORWARD SENSING CAMERA (FSC) AND CONNECTOR C-12 FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Inspect for continuity between forward sensing camera (FSC) terminals M and N. •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connector C-03 and connector C-12 because the wiring harness is shorted between circuits.
20	INSPECT FORWARD SENSING CAMERA (FSC) FOR SHORT BETWEEN CIRCUITS •  Disconnect the forward sensing camera (FSC) connector. •  Inspect for continuity between forward sensing camera (FSC) terminals M and N (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the forward sensing camera (FSC) and connector C-12 because the wiring harness is shorted between circuits.
		No	Replace the forward sensing camera (FSC) because there is a short between circuits in the forward sensing camera (FSC). (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)
21	INSPECT BETWEEN CONNECTOR C-12 AND CONNECTOR C-33 FOR SHORT BETWEEN CIRCUITS •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Disconnect connector C-33. •  Connect connector C-12. •  Connect connector C-03. •  Inspect for continuity between front body control module (FBCM) terminals 2P and 2N (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the connector C-12 and connector C-33 because the wiring harness is shorted between circuits.
		No	Go to the next step.
22	INSPECT BETWEEN CONNECTOR C-33 AND DLC-2 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between DLC-2 terminals F and E. •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-33 and DLC-2 because the wiring harness is shorted between circuits.
		No	Go to the next step.
23	INSPECT BETWEEN EPS CONTROL MODULE AND CONNECTOR C-33 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between EPS control module terminals 2B and 2D. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 25.
24	INSPECT EPS CONTROL MODULE FOR SHORT BETWEEN CIRCUITS •  Disconnect the EPS control module connector. •  Inspect for continuity between EPS control module terminals 2B and 2D (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the EPS control module and connector C-33 because the wiring harness is shorted between circuits.
		No	Replace the EPS control module because there is a short between circuits in the EPS control module. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
25	INSPECT BETWEEN START STOP UNIT AND CONNECTOR C-33 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between start stop unit terminals 2M and 2O. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 27.
26	INSPECT START STOP UNIT FOR SHORT BETWEEN CIRCUITS •  Disconnect the start stop unit connector. •  Inspect for continuity between start stop unit terminals 2M and 2O (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the start stop unit and connector C-33 because the wiring harness is shorted between circuits.
		No	Replace the start stop unit because there is a short between circuits in the start stop unit. (See START STOP UNIT REMOVAL/INSTALLATION.)
27	INSPECT JB No.2 FOR SHORT BETWEEN CIRCUITS •  Connect connector C-33. •  Disconnect connector C-34. •  Inspect for continuity between DLC-2 terminals F and E. •  Is there continuity?	Yes	Replace the JB No.2 because there is a short between circuits in the JB No.2.
		No	Go to the next step.
28	INSPECT BETWEEN CONNECTIVITY MASTER UNIT (CMU) AND CONNECTOR C-34 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between connectivity master unit (CMU) terminals 2E and 2F. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 30.
29	INSPECT CONNECTIVITY MASTER UNIT (CMU) FOR SHORT BETWEEN CIRCUITS •  Disconnect the connectivity master unit (CMU). •  Inspect for continuity between connectivity master unit (CMU) terminals 2E and 2F (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between connectivity master unit (CMU) and connector C-34 because the wiring harness is shorted between circuits.
		No	Replace the connectivity master unit (CMU) because there is a short between circuits in the connectivity master unit (CMU). (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.)
30	INSPECT BETWEEN SAS CONTORL MODULE AND CONNECTOR C-34 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between SAS control module terminals 3B and 3C. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 32.
31	INSPECT SAS CONTORL MODULE FOR SHORT BETWEEN CIRCUITS •  Disconnect the SAS control module. •  Inspect for continuity between SAS control module terminals 3B and 3C (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between SAS control module and connector C-34 because the wiring harness is shorted between circuits.
		No	Replace the SAS control module because there is a short between circuits in the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
32	INSPECT BETWEEN CONNECTOR C-09 AND CONNECTOR C-34 FOR SHORT BETWEEN CIRCUITS •  Disconnect connector C-09. •  Connect connector C-34. •  Inspect for continuity between DLC-2 terminals F and E. •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-34 and connector C-09 because the wiring harness is shorted between circuits.
		No	Go to the next step.
33	INSPECT BETWEEN AUDIO AMPLIFIER / ELECTRIC PARKING BRAKE CONTROL MODULE / POSITION MEMORY CONTROL MODULE AND CONNECTOR C-09 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between audio amplifier terminals 2L and 2N. (with Bose® type audio) •  Inspect for continuity between electric parking brake control module terminals AD and AB. (with electric parking brake (EPB)) •  Inspect for continuity between position memory control module terminals 1C and 1E. (with memory power seat) •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 43.
34	INSPECT BETWEEN CONNECTOR C-38 AND CONNECTOR C-09 FOR SHORT BETWEEN CIRCUITS •  Disconnect connector C-38. •  Connect connector C-09. •  Inspect for continuity between DLC-2 terminals F and E. •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-38 and connector C-09 because the wiring harness is shorted between circuits.
		No	Go to the next step.
35	INSPECT BETWEEN AUDIO AMPLIFIER AND CONNECTOR C-38 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between audio amplifier terminals 2L and 2N. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 37.
36	INSPECT AUDIO AMPLIFIER FOR SHORT BETWEEN CIRCUITS •  Disconnect the audio amplifier connector. •  Inspect for continuity between audio amplifier terminals 2L and 2N (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the audio amplifier and connector C-38 because the wiring harness is shorted between circuits.
		No	Replace the audio amplifier because there is a short between circuits in the audio amplifier. (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
37	INSPECT BETWEEN CONNECTOR C-62 AND CONNECTOR C-38 FOR SHORT BETWEEN CIRCUITS •  Disconnect connector C-62. •  Connect connector C-38. •  Measure the voltage at DLC-2 terminals F and E. •  Is the voltage at DLC-2 terminals F and E the same?	Yes	Repair or replace the wiring harness between connector C-62 and connector C-38 because the wiring harness is shorted between circuits.
		No	Go to the next step.
38	INSPECT BETWEEN ELECTRIC PARKING BRAKE CONTROL MODULE AND CONNECTOR C-62 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between electric parking brake control module terminals AD and AB. •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 40.
39	INSPECT ELECTRIC PARKING BRAKE CONTROL MODULE FOR SHORT BETWEEN CIRCUITS •  Disconnect the electric parking brake control module connector. •  Inspect for continuity between electric parking brake control module terminals AD and AB (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the electric parking brake control module and connector C-62 because the wiring harness is shorted between circuits.
		No	Replace the electric parking brake control module because there is a short between circuits in the electric parking brake control module. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)
40	INSPECT BETWEEN POSITION MEMORY CONTROL MODULE AND CONNECTOR C-62 FOR SHORT BETWEEN CIRCUITS •  Inspect for continuity between position memory control module terminals 1C and 1E. •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connector C-62 and connector C-09 because the wiring harness is shorted between circuits.
41	INSPECT BETWEEN POSITION MEMORY CONTROL MODULE AND CONNECTOR C-25 FOR SHORT BETWEEN CIRCUITS •  Disconnect connector C-25. •  Inspect for continuity between position memory control module terminals 1C and 1E. •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connector C-62 and connector C-25 because the wiring harness is shorted between circuits.
42	INSPECT POSITION MEMORY CONTROL MODULE FOR SHORT BETWEEN CIRCUITS •  Disconnect the position memory control module connector. •  Inspect for continuity between position memory control module terminals 1C and 1E (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the position memory control module and connector C-25 because the wiring harness is shorted between circuits.
		No	Replace the position memory control module because there is a short between circuits in the position memory control module. (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION.)
43	INSPECT INSTRUMENT CLUSTER FOR SHORT BETWEEN CIRCUITS •  Disconnect the instrument cluster connector. •  Inspect for continuity between instrument cluster terminals B and D (wiring harness side). •  Is there continuity?	Yes	Repair or replace the wiring harness between the instrument cluster and connector C-09 because the wiring harness is shorted between circuits.
		No	Replace the instrument cluster because there is a short between circuits in the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
44	INSPECT PCM FOR SHORT BETWEEN CIRCUITS •  Disconnect the PCM connector. •  Inspect for continuity between PCM terminals 2AK and 2AL (wiring harness side). (SKYACTIV-G1.5,2.0,2.5, SKYACTIV-D2.2) •  Inspect for continuity between PCM terminals 2C and 2D (wiring harness side). (SKYACTIV-D1.5) •  Is there continuity?	Yes	Repair or replace the wiring harness between the PCM and connector C-60 because the wiring harness is shorted between circuits.
		No	Replace the PCM because there is a short between circuits in the PCM. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.5].) (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
