ENGINE DISASSEMBLY/ASSEMBLY [MZR-CD 2.2]

id0110f2800500

1.  Remove the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION [MZ-CD 1.6, MZR-CD 2.2].)

2.  Disconnect the engine and transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [A26M-R (MZR-CD 2.2)].)

3.  Remove the EGR pipe and EGR valve. (See EGR VALVE REMOVAL/INSTALLATION [MZR-CD 2.2].)

4.  Remove the exhaust system. (See EXHAUST SYSTEM INSPECTION [MZR-CD 2.2].)

5.  Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2].)

6.  Remove the supply pump. (See SUPPLY PUMP REMOVAL/INSTALLATION [MZR-CD 2.2].)

7.  Remove the fuel injectors. (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR-CD 2.2].)

8.  Remove the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION [MZR-CD 2.2].)

9.  Remove the oil filter. (See OIL FILTER REPLACEMENT [MZR-CD 2.2].)

10.  Remove the water pump and thermostat case component. (See WATER PUMP REMOVAL/INSTALLATION [MZR-CD 2.2].)

11.  Remove the crankshaft pulley. (See FRONT OIL SEAL REPLACEMENT [MZR-CD 2.2].)

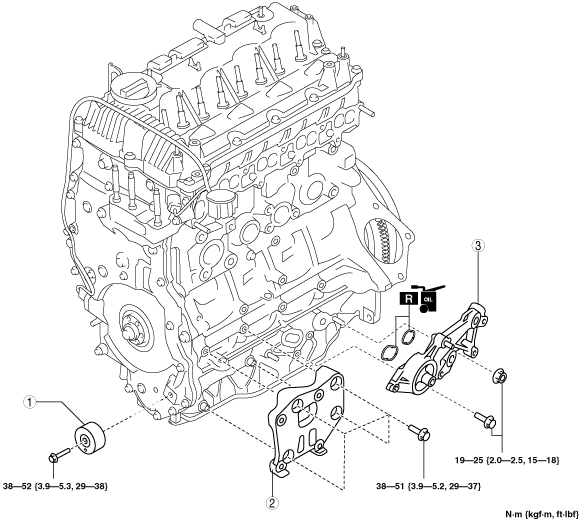

12.  Disassemble in the order indicated in the table.

13.  Assemble in the reverse order of disassembly.

am3zzw00005278

1	Idler
2	A/C compressor bracket (See A/C Compressor Bracket Installation Note.)
3	Oil filter body

A/C Compressor Bracket Installation Note

1.  Tighten the A/C compressor bracket bolts in the order shown.

am5ezw00001490
