DRIVE BELT REMOVAL/INSTALLATION [MZR-CD 2.2]

id0110f2801600

1.  Remove the aerodynamic under cover No.2 and splash shield as a single unit. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

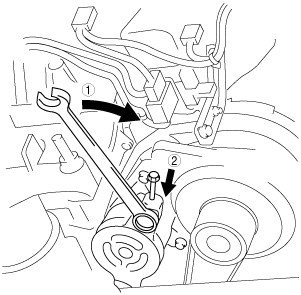

2.  Move the drive belt auto tensioner to the end in the direction shown in the figure, then insert the bolt to secure it.

Caution

•  Use the following bolt to prevent incorrect installation.

Size: M6

Shape of the tip: Unpointed end or flat point

Bolt stem length: 40—55 mm {1.6—2.1 in}

am6zzw00004478

3.  Remove the drive belt.

4.  Install the drive belt.

5.  Remove the bolt inserted to the drive belt auto tensioner.

6.  Install in the reverse order of removal.
