RADIATOR REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo]

id011209801400

Warning

•  Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.

•  Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise 2.5 turns. Step back while the pressure escapes.

•  When you are sure all the pressure is gone, turn the cap using the cloth, and remove it.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

3.  Remove the air cleaner component, air cleaner bracket and fresh air duct (No.1, No.2). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

4.  Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

5.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR 2.3 DISI Turbo].)

6.  Remove the cooling fan component. (See COOLING FAN COMPONENT REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

9.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR 2.3 DISI Turbo].)

10.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [MZR 2.3 DISI Turbo].)

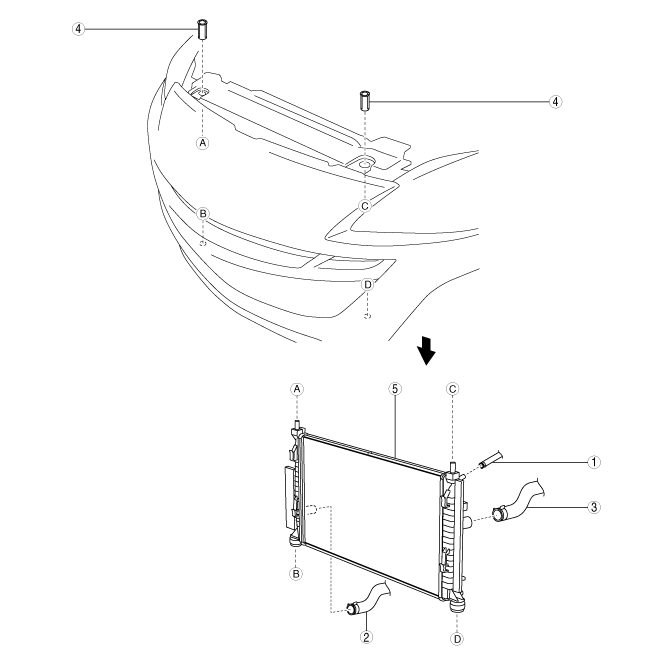

am3uuw00006089

1	Coolant reserve tank hose
2	Lower radiator hose
3	Upper radiator hose
4	Radiator mount (See Radiator Mount Removal Note.) (See Radiator Mount Installation Note.)
5	Radiator (See Radiator Removal Note.)

Radiator Mount Removal Note

1.  While pressing the radiator mount tab in the direction of the arrow shown in the figure, lift the radiator mount.

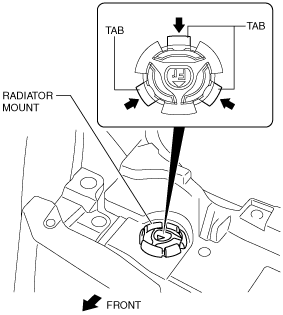

am3uuw00005216

2.  Remove the radiator mount.

Radiator Removal Note

1.  Lift the radiator and remove it from the radiator installation holes on the shroud panel.

2.  Move the radiator and condenser to the engine side.

3.  Release the left and right tabs on the lower side of the radiator by pressing them in the direction shown in the figure.

am3uuw00005217

4.  Lift the condenser to remove it from the left and right insertion areas on the upper side of the radiator.

am3uuw00005218

5.  Set the condenser apart from the radiator.

6.  Remove the radiator from below the engine compartment.

Radiator Mount Installation Note

1.  Install the radiator mount so that the arrow on it is pointed toward the front of the vehicle.

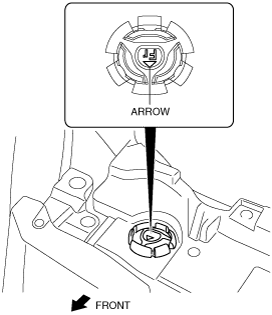

am3uuw00005219
