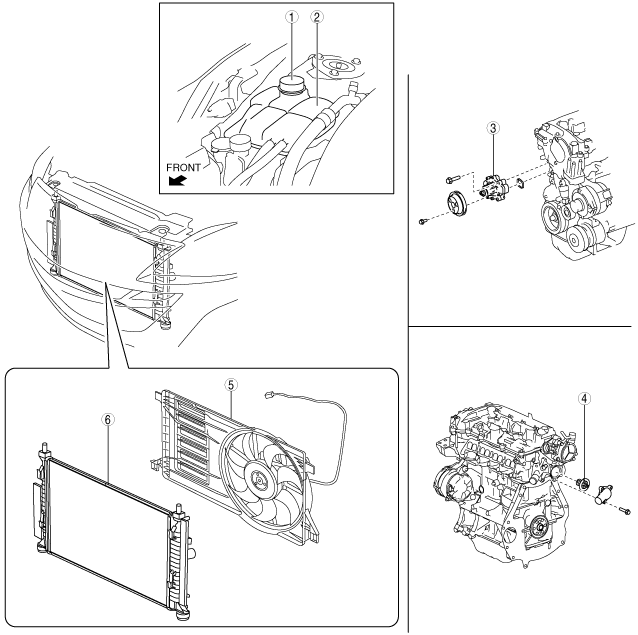

COOLING SYSTEM LOCATION INDEX [SKYACTIV-G 2.0]

id0112h4800100

am3uuw00008932

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [SKYACTIV-G 2.0].)
2	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-G 2.0].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
3	Water pump (See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
4	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See THERMOSTAT INSPECTION [SKYACTIV-G 2.0].)
5	Cooling fan component (See COOLING FAN COMPONENT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See COOLING FAN COMPONENT INSPECTION [SKYACTIV-G 2.0].)
6	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-G 2.0].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.0].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.0].) (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See RADIATOR DRAIN PLUG REPLACEMENT [SKYACTIV-G 2.0].)
