VARIABLE INTAKE AIR SOLENOID VALVE INSPECTION [MZR 2.0, MZR 2.5]

id0113d2802800

Airflow Inspection

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

3.  Remove the variable intake air solenoid valve. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

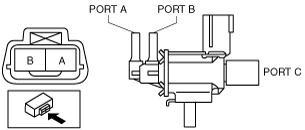

4.  Inspect airflow between the ports under the following conditions.

am6xuw00000451

am3zzw00012019

•  If not as specified, replace the variable intake air solenoid valve. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
