FUEL SYSTEM LOCATION INDEX [MZR 2.0 DISI i-stop]

id0114b9800100

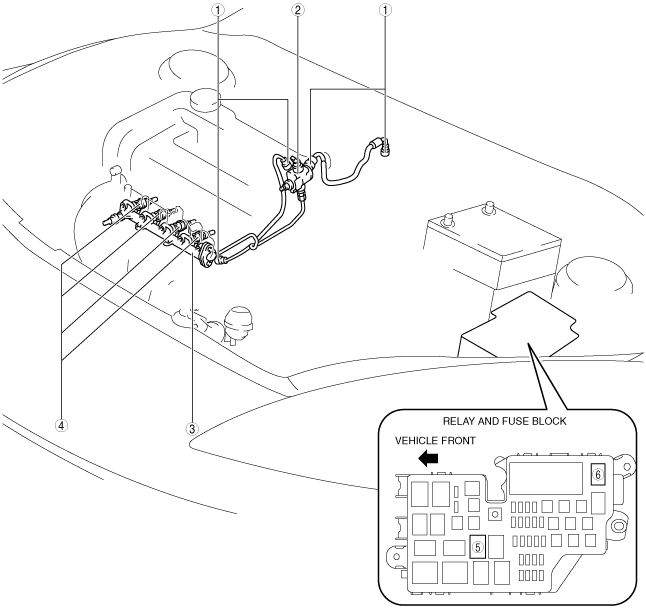

Engine Compartment Side

am3zzw00012049

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
2	High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See HIGH PRESSURE FUEL PUMP INSPECTION [MZR 2.0 DISI i-stop].)
3	Fuel delivery pipe (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
4	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See FUEL INJECTOR INSPECTION [MZR 2.0 DISI i-stop].)
5	Fuel injector relay (See RELAY INSPECTION.)
6	Fuel pump relay (See RELAY INSPECTION.)

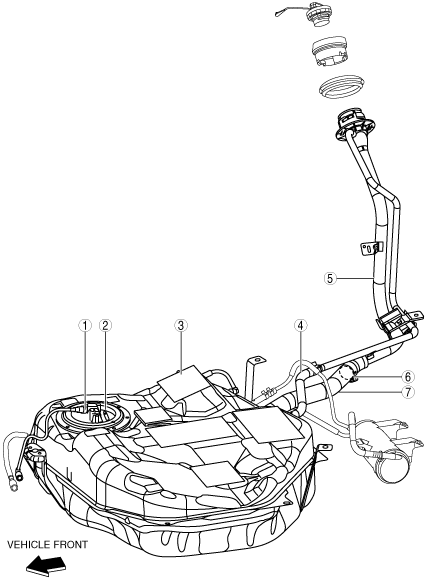

Fuel Tank Side

am3zzw00012050

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [MZR 2.0 DISI i-stop].) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See FUEL PUMP UNIT INSPECTION [MZR 2.0 DISI i-stop].)
3	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See FUEL TANK INSPECTION [MZR 2.0 DISI i-stop].)
4	Breather hose (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
5	Fuel-filler pipe (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
6	Non-return valve (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See NON-RETURN VALVE INSPECTION [MZR 2.0 DISI i-stop].)
7	Joint hose (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
