FUEL SYSTEM LOCATION INDEX [MZR 2.3 DISI Turbo]

id0114d9800100

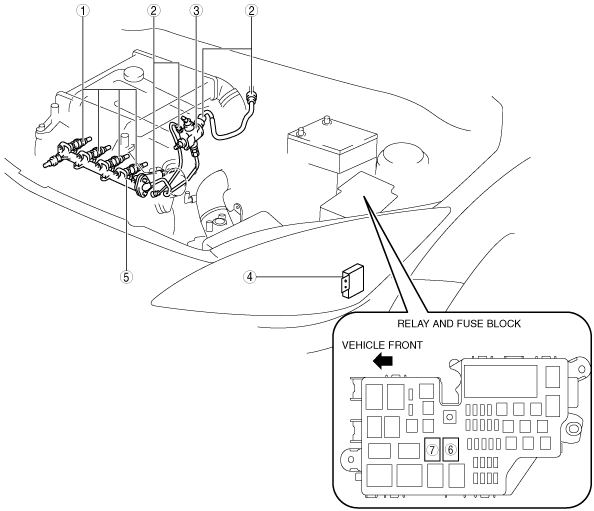

Engine Room Side

am3zzw00012069

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See FUEL INJECTOR INSPECTION [MZR 2.3 DISI Turbo].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
3	High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See HIGH PRESSURE FUEL PUMP INSPECTION [MZR 2.3 DISI Turbo].)
4	Fuel pump resistor (See FUEL PUMP RESISTOR REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See FUEL PUMP RESISTOR INSPECTION [MZR 2.3 DISI Turbo].)
5	Fuel delivery pipe (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
6	Fuel pump speed control relay (See RELAY INSPECTION.)
7	Fuel pump relay (See RELAY INSPECTION.)

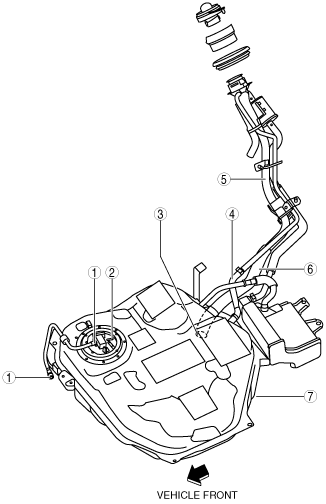

Fuel Tank Side

am3zzw00012070

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [MZR 2.3 DISI Turbo].) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See FUEL PUMP UNIT INSPECTION [MZR 2.3 DISI Turbo].)
3	Non-return valve (See NON-RETURN VALVE INSPECTION [MZR 2.3 DISI Turbo].)
4	Breather hose (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
5	Fuel-filler pipe (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
6	joint hose (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
7	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See FUEL TANK INSPECTION [MZR 2.3 DISI Turbo].)
