IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0]

id0118h6811200

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

4.  Remove the plug hole plate bracket. (See TIMING CHAIN REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

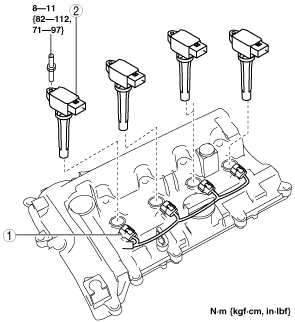

am3zzw00012625

1	Connector
2	Ignition coil
