AIR FUEL RATIO (A/F) SENSOR INSPECTION [MZR 2.0, MZR 2.5]

id0140e4899600

A/F Sensor Inspection

1.  Connect the M-MDS to the DLC-2.

am3zzw00011847

2.  Switch the ignition to ON.

3.  Warm up the engine to normal operating temperature.

4.  Access the following PIDs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [MZR 2.0, MZR 2.5].)

―  VSS (Vehicle speed)

―  RPM (Engine speed)

―  O2S11 (A/F sensor output current)

5.  Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3,000 rpm or more.

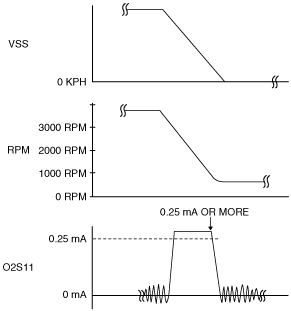

6.  Verify that the A/F sensor output current (PID: O2S11) is 0.25 mA or more while decelerating as shown in the figure.

am3zzw00011848

•  If not as specified, replace the A/F sensor. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

A/F Sensor Heater Inspection

Warning

•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

4.  Remove the air cleaner assembly. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

5.  Disconnect the A/F sensor connector.

6.  Measure the resistance between A/F sensor terminals A and E.

am3zzw00011849

•  If not as specified, replace the A/F sensor. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
