REAR LOWER ARM REMOVAL/INSTALLATION

id021400800900

1.  Disconnect the auto leveling sensor link lower side. (Vehicle with discharge headlight system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT.)

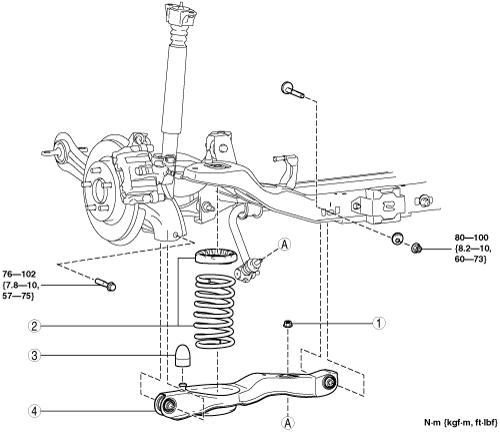

am3zzw00013260

1	Rear stabilizer control link upper side nut (See Rear Stabilizer Control Link Upper Part Removal Note.) (See Rear Stabilizer Control Link Upper Side Nut Installation Note.)
2	Rear coil spring component (See REAR COIL SPRING REMOVAL/INSTALLATION.)
3	Bound stopper
4	Rear lower arm (SeRear Lower Arm (RH) Removal Note (MZR 2.3 DISI Turbo).) (See Rear Lower Arm (RH) Installation Note (MZR 2.3 DISI Turbo).)

Rear Stabilizer Control Link Upper Part Removal Note

1.  Disconnect the rear stabilizer control link upper part.

Caution

•  Even if the servicing is performed only on one side of the vehicle, disconnect the rear stabilizer control link on the left and right sides.

2.  Rotate the rear stabilizer as shown in the figure.

azzzcw00000089

Rear Lower Arm (RH) Removal Note (MZR 2.3 DISI Turbo)

1.  Remove the charcoal canister installation bolts (rear side), and push the charcoal canister up slightly.

am3uuw00003077

2.  Remove the rear lower arm inner bolt.

3.  Remove the rear lower arm.

Rear Lower Arm (RH) Installation Note (MZR 2.3 DISI Turbo)

1.  Push the charcoal canister up slightly.

2.  Install the rear lower arm inner bolt.

3.  Tighten the charcoal canister installation bolts (rear side).

am3uuw00005494

Rear Stabilizer Control Link Upper Side Nut Installation Note

1.  Verify the shape of the removed nut and if it is an A type, replace the nut with a new one.

Caution

•  Because the A type nut is a locknut, if the nut is reused it could loosen.

azzzcw00000090

2.  Install and tighten the nut.

azzzcw00000090
