POWER BRAKE UNIT REMOVAL/INSTALLATION (L.H.D.) [MZR 2.3 DISI Turbo]

id0411008037p3

Caution

•  Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again. Therefore, replace the switch with a new one when replacing the power brake unit or performing any procedure that changes the pedal stroke.

•  Secure the steering wheel using tape or a cable to prevent the steering shaft from rotating after disconnecting the steering shaft. If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged.

1.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

2.  Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

3.  Loosen the brake pipe flare nuts as shown in the figure.

am3uuw00005936

4.  Move the brake pipes as shown in the figure.

am3uuw00005937

5.  Disconnect the steering shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

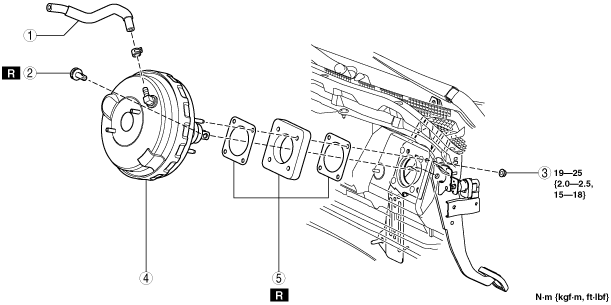

6.  Remove in the order indicated in the table.

7.  Remove the brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].)

8.  Install in the reverse order of removal.

9.  After installation, inspect the brake pedal. (See BRAKE PEDAL INSPECTION.)

am3zzw00008587

1	Vacuum hose
2	Joint pin (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].)
3	Nut
4	Power brake unit
5	Gasket
