M RANGE SWITCH INSPECTION [FN4A-EL]

id051701291400

1.  Perform the following procedures.

(1)  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
(2)  Disconnect the negative battery cable.
(3)  Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)
(4)  Disconnect the selector lever component connector.

L.H.D.

am3uuw00002996

R.H.D.

am3zzw00005086

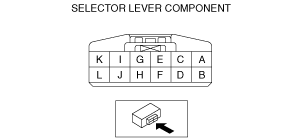

2.  Inspect the continuity between the selector lever component terminals A and H.

am3uuw00002434

•  If there is any malfunction, replace the selector lever component. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

M range switch specification

Test condition

Continuity
M range
Continuity
Except M range
No continuity
