OIL COOLER REMOVAL/INSTALLATION [FW6A-EL]

id0517h1117500

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Remove the aerodynamic under cover NO.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

4.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL].)

5.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.0].)

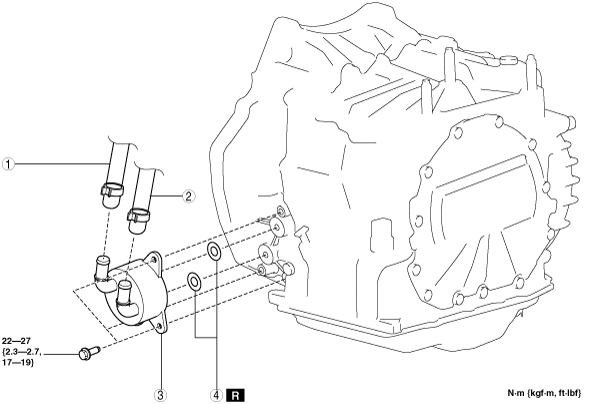

6.  Remove in the order indicated in the table.

am3uuw00009170

1	Water hose (connected to the water pipe)
2	Water hose (connected to the outlet)
3	Water-cooled oil cooler
4	O-rings

7.  Install in the reverse order of removal.

8.  Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.0].)

9.  Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL].)

10.  Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [FW6A-EL].)

Water Hose Installation Note

1.  Install the water hose to the oil cooler as shown in the figure with the hose clamp expanded.

Note

•  A new water hose and hose clamp are attached.

am3uuw00008323

2.  Install the hose clamp to the position shown in the figure.

am3uuw00008324

•  Verify that the installation angle of the hose clamp is within the range shown in the figure.

3.  Verify that the hose clamp does not interfere with any other components.
