DTC B1086:71 [FULL-AUTO AIR CONDITIONER]

id0702c1816700

Note
•  DTC B1081:71, B1082:71 is detected when the ignition is switched ON and approx. 30 s have passed since the air mix actuator is operated.

DTC B1086:71

Airflow mode actuator motor lock
POSSIBLE CAUSE
•  Connector or terminal malfunction
•  Airflow mode actuator malfunction
•  A/C unit (airflow mode link and airflow mode crank) malfunction

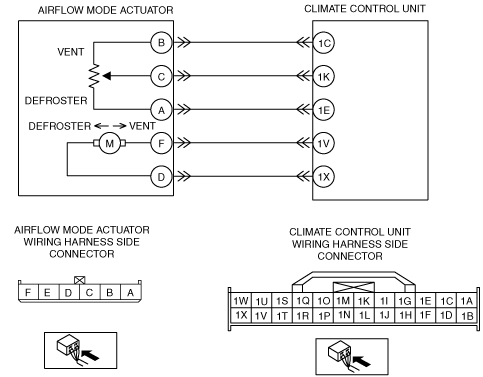

•  Open circuit in wiring harness between climate control unit connector terminal 1V and 1X
•  Short to ground in wiring harness between climate control unit connector terminal 1V and 1X
•  Climate control unit malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
INSPECT AIRFLOW MODE ACTUATOR CONNECTOR
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Disconnect the airflow mode actuator connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Are the connector and terminals normal?
Yes
Go to the next step.
No
Repair/replace the connector or terminal.
After repair procedure, go to the next step.
2
INSPECT AIRFLOW MODE ACTUATOR OPERATION
•  Disconnect the airflow mode actuator connector.
•  Apply battery positive voltage and connect the ground to the airflow mode actuator terminals F and D, and then inspect the airflow mode actuator.
•  Does the airflow mode actuator operate?
Yes
Connect the connector, then go to Step 4.
No
Go to the next step.
3
INSPECT AIRFLOW MODE MAIN LINK OPERATION
•  Remove the airflow mode actuator.
•  Operate the airflow mode main link manually.
•  Does the airflow mode main link operate smoothly?
Yes
Replace the airflow mode actuator.
(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
Go to the next step.
No
Replace the airflow mode main link, airflow mode sub link, and the airflow mode crank.
Go to the next step.
4
INSPECT AIRFLOW MODE ACTUATOR CIRCUIT FOR OPEN CIRCUIT OR SHORT TO GROUND
•  Disconnect the climate control unit connector.
•  Apply battery positive voltage and connect the ground to the climate control unit connector terminals 1V and 1X, and then inspect the airflow mode actuator.
•  Does the airflow mode actuator operate?
Yes
Go to the next step.
No
Repair/replace the malfunctioning vehicle wiring harness.
After repair procedure, go to the next step.
5
VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Are the connector and terminals normal?
Yes
Go to the next step.
No
Repair/replace the malfunctioning vehicle wiring harness, connector, or terminal.
After repair procedure, go to the next step.
6
VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN
•  Reconnect the disconnected connectors.
•  Connect the negative battery cable.
•  Clear the past malfunction from memory.
•  Verify DTCs.
•  Is DTC B1086:71 output?
Yes
Repeat the inspection from Step 1.
•  If the malfunction does not recur, go to the next step.
•  If the malfunction recurs, replace the climate control unit.
Go to the next step.
No
Go to the next step.
7
VERIFY THAT NO OTHER DTCs ARE PRESENT
•  Verify other DTCs displayed.
•  Are any other DTCs output?
Yes
Perform the corresponding DTC inspection.
No
DTC troubleshooting completed.
