FRONT BUMPER REMOVAL/INSTALLATION

id091000800300

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Remove the screw A and fasteners B.

am3uuw00003619

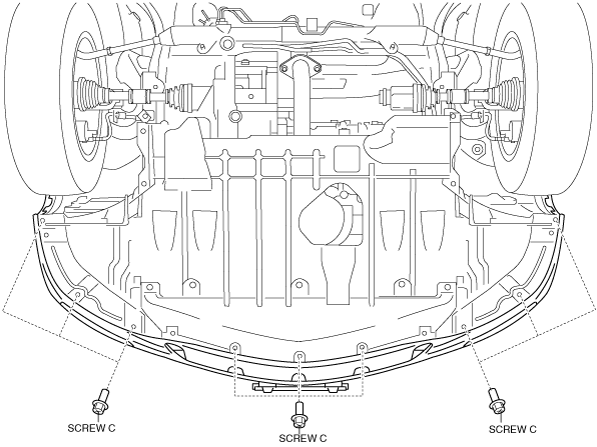

3.  Remove the screws C.

am3uuw00008180

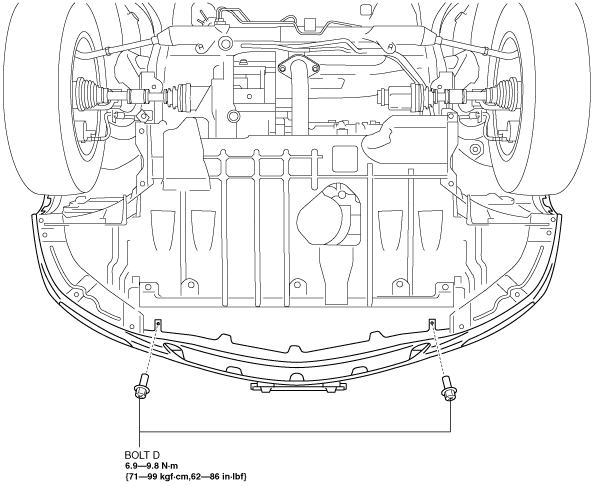

4.  Remove the bolts D.

am3zzw00006109

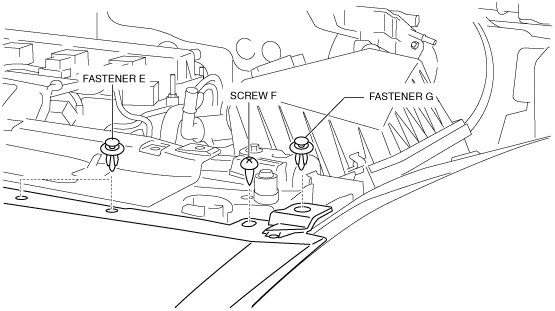

5.  Remove the fasteners E, screw F and fastener G.

am3zzw00006110

6.  Pull the front bumper in the direction of the arrow in the order of (1), (2) and (3), then remove the front bumper. (See Front Bumper Installation Note.)

am3uuw00008181

Caution

•  The front bumper and front bumper slider are engaged firmly. If they are disengaged forcibly the bumper could fall and be damaged. Perform the servicing carefully when disengaging the front bumper from the front bumper slider.

•  When disengaging the front bumper from the front bumper slider, the front bumper could fall and be damaged. Support the front bumper so that it does not fall.

7.  Disconnect the front fog light connector. (Vehicles with front fog lights)

8.  Install in the reverse order of removal.

9.  Adjust the front fog light aiming for vehicles with front fog lights. (See FRONT FOG LIGHT AIMING.)

Front Bumper Installation Note

1.  Spread the front bumper ends apart.

Caution

•  The front bumper and front bumper slider are engaged firmly. If they are disengaged forcibly the bumper could fall and be damaged. Perform the servicing carefully when disengaging the front bumper from the front bumper slider.

•  When disengaging the front bumper from the front bumper slider, the front bumper could fall and be damaged. Support the front bumper so that it does not fall.

am3uuw00003623

2.  Attach the front bumper to the body.

3.  Press the front bumper connecting area in the direction of the arrow shown in the figure to engage with the front bumper slider.

Front Bumper of New Parts Installation Note

1.  Paint the front bumper face.

2.  Cut the rib position of A, B, and C from the base with using a nipper.

am3uuw00002986
