OUTER MIRROR GLASS INSTALLATION

id091200802700

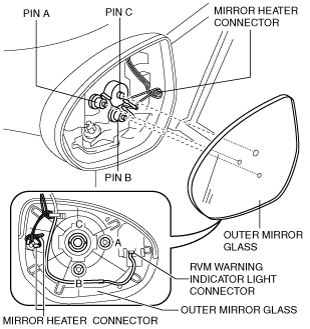

1.  Connect the mirror heater connectors. (vehicles with heated outer mirror)

am3zzw00012429

2.  Connect the RVM warning indicator light connector. (vehicles with rear vehicle monitoring system)

Note

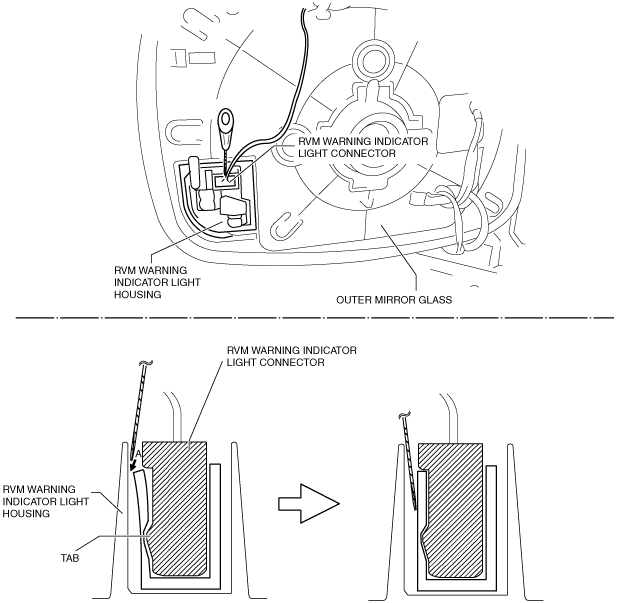

•  Lightly pull the RVM warning indicator light connector and verify that the RVM warning indicator light housing cannot be pulled off. If the connection is poor, insert a tape-wrapped flathead screwdriver into position A shown in the figure and engage the connector.

am3zzw00008648

3.  Press part C on the outer mirror glass and install pin C.

4.  Press part A on the outer mirror glass and install pins A.

5.  Press part B on the outer mirror glass and install pins B.

6.  Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
