REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION

id091200807200

1.  Fully lower the rear door glass.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Remove the hole cover.

am3uuw00002896

5.  Remove the hole plug.

am3uuw00004984

6.  Remove the screw.

7.  Remove the bolt A and B.

8.  Remove the rear door glass guide.

am3uuw00005004

9.  Remove the pin. (5HB)

am3uuw00002940

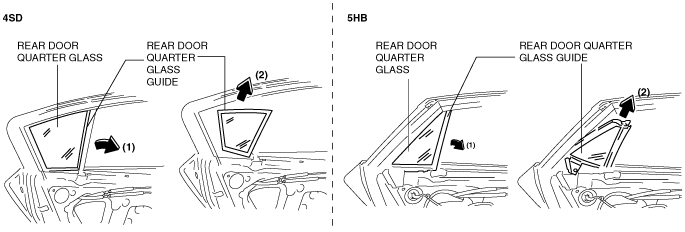

10.  Slide the rear door quarter glass in the direction of the arrow (1) shown in the figure.

am3zzw00012917

11.  Remove the rear door quarter glass and rear door quarter glass guide as a single unit in the direction of the arrow (2) shown in the figure.

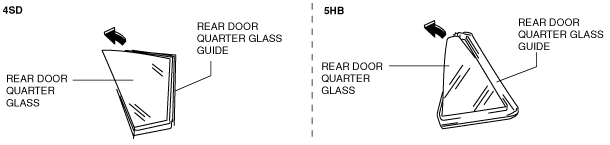

12.  Remove the rear door quarter glass from the rear door quarter glass guide.

am3uuw00005563

13.  Install in the reverse order of removal.
