FRONT SEAT BACK TRIM REMOVAL/INSTALLATION

id091300912000

Warning

• Handling a front seat (with built-in side air bag) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings before handling a front seat (with built-in side air bag). (See AIR BAG SYSTEM SERVICE WARNINGS.)

Caution

• After removing a front seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the front seat is installed.

• Verify that there are no malfunctions in the sliding mechanism after installing a front seat.

• When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.

Removal

1. Switch the ignition to off.

2. Remove the battery cover.

3. Disconnect the negative battery cable and wait 1 min. or more.

4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5. Remove the headrest.

6. Cut the band securing the harness.

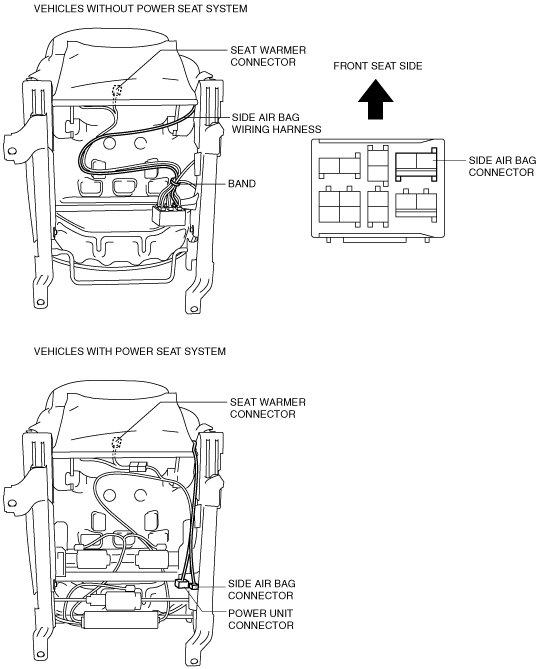

L.H.D.

am3zzw00006532

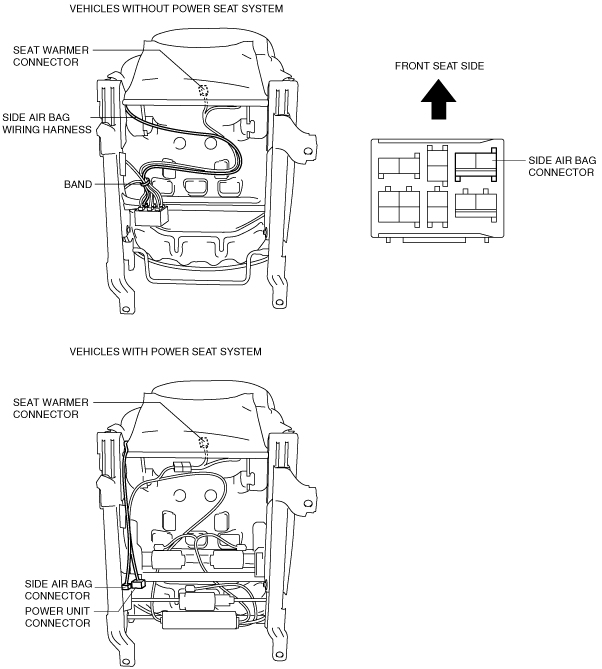

R.H.D.

am3zzw00006533

7. Disconnect the side air bag connector and seat warmer connector (Vehicles with seat warmer).

8. Slide hook A in the order of (1), (2), (3) shown in the figure to detach it from hook B.

am3zzw00006534

9. Open the fastener.

am3uuw00003530

10. Remove the clip A then remove the lumbar support lever (Vehicles with lumbar support).

am3zzw00005677

11. Partially peal back the front seat back trim, release the pole guide tabs in the direction of arrow (4) shown in the figure, then pull the pole guide out in the direction of arrow (5).

12. Remove the nut and remove the holder bracket A.

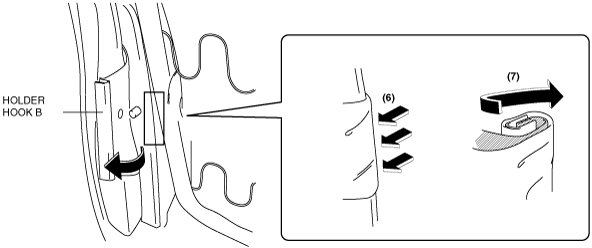

13. Remove the holder hook B in the order of (6), (7) as shown in the figure.

am3zzw00006535

am3zzw00006536

14. Pull out part A shown in the figure to the front.

am3uuw00003534

15. Remove the seat back trim and the seat back pad as a single unit from the seat frame by pulling them in the direction of the arrow.

am3zzw00006537

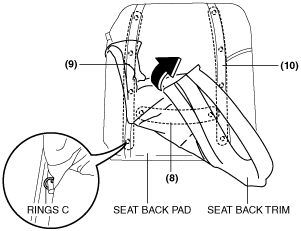

16. Partially peal back the seat back trim from the seat back pad, remove rings C in the order of (8), (9), (10) shown in the figure, then remove the seat back trim.

Vehicle identification number

• JMZ BL12F6*#:500001—539738, JMZ BL12F7*#:500001—539738, JMZ BL12Z2*#:500001—539738, JMZ BL12Z5*#:500001—539738, JMZ BL14F6*#:500001—539738, JMZ BL14F7*#:500001—539738, JMZ BL14Z2*#:500001—539738, JMZ BL14Z5*#:500001—539738, JMZ BLA2Y6*#:500001—539738, JMZ BLA4Y6*#:500001—539738, JMZ BLB2F7*#:500001—539738, JMZ BLB2G6*#:500001—539738, JMZ BLB2Y6*#:500001—539738, JMZ BLB4Y6*#:500001—539738, JMZ BLB2Z2*#:500001—539738, JMZ BLB2Z5*#:500001—539738, JMZ BLB436*#:500001—, JMZ BLB4A6*#:500001—539738, JMZ BLB4C6*#:500001—539738, JMZ BLB4F7*#:500001—539738, JMZ BLB4G6*#:500001—539738, JMZ BLB4Z2*#:500001—539738, JMZ BLB4Z5*#:500001—539738, JM0 BL103200:300001—, JM0 BL107200:300001—341909, JM0 BL10C200:300001—341909, JM0 BL10F200:300001—341909, JM0 BL10L200:300001—341909, JM6 BL1032*0:300001—, JM6 BL1052*0:300001—341882, JM6 BL1072*0:300001—341882, JM6 BL10F2*0:300001—341882, JM6 BL10L2*0:300001—341882, JM6 BL10Z2*0:300001—341882, JM7 BL12F*#:300001—341882, JM7 BL12Z*#:300001—341882, JM7 BL14F*#:300001—341882, JM7 BL14Z*#:300001—341882, JM7 BL1HZ*#:300001—341882, JM7 BL1SZ*#:300001—341882, JM7 BL22F*#:300001—341882, JM7 BL22Z*#:300001—341882, JM7 BL24F*#:300001—341882, JM7 BL24Z*#:300001—341882, JM7 BL2HZ*#:300001—341882, JM7 BL2SZ*#:300001—341882, BL10F2:200001—341882, BL10Z2:200001—341882

am3zzw00013338

Vehicle identification number

• JMZ BL12F6*#:539739—, JMZ BL12F7*#:539739—, JMZ BL12Z2*#:539739—, JMZ BL12Z5*#:539739—, JMZ BL14F6*#:539739—, JMZ BL14F7*#:539739—, JMZ BL14Z2*#:539739—, JMZ BL14Z5*#:539739—, JMZ BLA2Y6*#:539739—, JMZ BLA4Y6*#:539739—, JMZ BLB2F7*#:539739—, JMZ BLB2G6*#:539739—, JMZ BLB2Y6*#:539739—, JMZ BLB4Y6*#:539739—, JMZ BLB2Z2*#:539739—, JMZ BLB2Z5*#:539739—, JMZ BLB4A6*#:539739—, JMZ BLB4C6*#:539739—, JMZ BLB4F7*#:539739—, JMZ BLB4G6*#:539739—, JMZ BLB4Z2*#:539739—, JMZ BLB4Z5*#:539739—, JM0 BL107200:341910—, JM0 BL10C200:341910—, JM0 BL10F200:341910—, JM0 BL10L200:341910—, JM7 BL12F*#:341883—, JM7 BL12Z*#:341883—, JM7 BL14F*#:341883—, JM7 BL14Z*#:341883—, JM7 BL1HZ*#:341883—, JM7 BL1SZ*#:341883—, JM7 BL22F*#:341883—, JM7 BL22Z*#:341883—, JM7 BL24F*#:341883—, JM7 BL24Z*#:341883—, JM7 BL2HZ*#:341883—, JM7 BL2SZ*#:341883—, BL10F2:341883—, BL10Z2:341883—, JM6 BL1052*0:341883—, JM6 BL1072*0:341883—, JM6 BL10F2*0:341883—, JM6 BL10L2*0:341883—, JM6 BL10Z2*0:341883—

am3zzw00013339

Installation

1. Install the seat back trim to the front seat back pad, install the rings C in the order of (1), (2), (3) shown in the figure, then install the seat back trim.

Vehicle identification number

am3zzw00013340

Vehicle identification number

am3zzw00013341

2. Install the seat back trim and the seat back pad as a single unit from the seat frame by pushing them in the direction of the arrow

am3zzw00006538

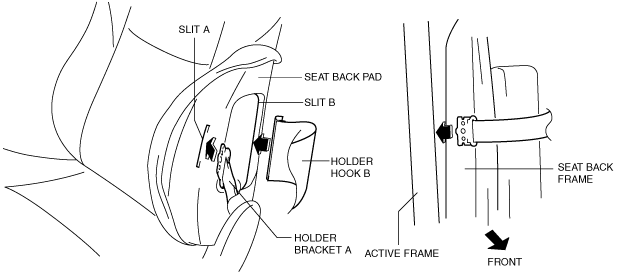

3. Pass holder bracket A through slit A, holder hook B through slit B of the seat back pad.

am3zzw00006539

Caution

• Install it without twisting the sleeve.

• Get the holder bracket through between active frame and seat back frame.

4. Push the part A shown in the figure to the rear.

am3uuw00003540

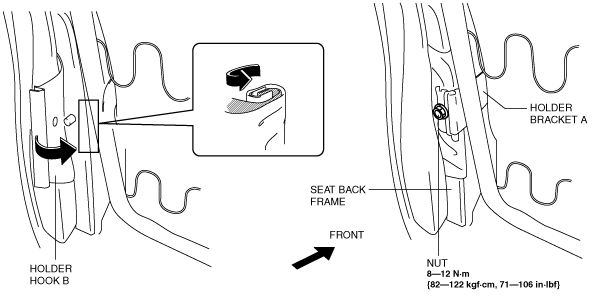

5. Assemble the holder bracket A to the seat back frame and install the nut shown in the figure.

am3zzw00006540

6. Install the pole guide in the direction of arrow shown in the figure.

am3uuw00003542

7. shut the fastener.

8. Install the clip A to the lumber support lever, then install the lumber support lever (Vehicles with lumbar support).

am3zzw00005678

9. Slide hook A in the order of (4), (5), (6) shown in the figure to install it to hook B

am3zzw00006541

10. Connect the side air bag connector and seat warmer connector (Vehicles with seat warmer).

11. Install the band, while tighten the harness.

L.H.D.

am3zzw00006532

R.H.D.

am3zzw00006533

12. Connect the negative battery cable and wait 1 min. or more. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

13. Install the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
