FRONT SEAT COVER REMOVAL/INSTALLATION [VEHICLES WITHOUT POWER SEAT SYSTEM]

id091300989142

Warning

• Handling a front seat (with built-in side air bag) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings before handling a front seat (with built-in side air bag). (See AIR BAG SYSTEM SERVICE WARNINGS.)

Caution

• After removing a front seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the front seat is installed.

• Verify that there are no malfunctions in the sliding mechanism after installing a front seat.

• When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.

L.H.D.

Driver-side (recliner dial type)

1. Switch the ignition to off.

2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

3. Disconnect the negative battery cable and wait 1 min or more. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5. Operate the lift lever in the direction of arrow (1) shown in the figure.

am3uuw00003564

6. Insert a fastener remover from the position of arrow (2) shown in the figure, and remove the lift lever cover by disengaging the tab.

7. Remove the screws, then remove the lift lever in the direction of the arrow.

am3zzw00005686

8. Using a cloth, remove the recliner dial installation clip and remove the recliner dial.

am3zzw00005687

9. Pull the side cover (front door side) in the order of (3), (4), (5) shown in the figure to disengage the fastener and tab.

am3zzw00005688

10. Remove the front seat side cover (front door side).

11. Remove the fastener left to the front seat frame and install it to the original position of the cover.

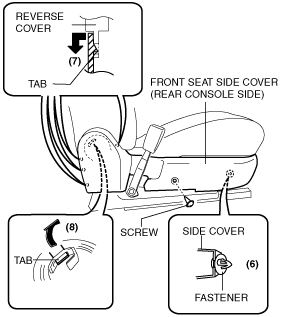

12. Remove the screw, and pull the side cover (rear console side) in the order of (6), (7), (8) shown in the figure to disengage the fastener and tab.

am3zzw00006549

13. Remove the front seat side cover (rear console side).

14. Remove the fastener left to the front seat frame and install it to the original position of the cover.

15. Install in the reverse order of removal.

Recliner Dial Installation Note

1. Install the clip to the recliner dial in the direction of arrow (1) shown in the figure.

am3zzw00005690

2. Install the recliner knob to the front seat side cover in the direction of arrow (2) shown in the figure.

am3zzw00005691

Driver-side (recliner lever type)

1. Switch the ignition to off.

4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5. Operate the lift lever in the direction of arrow (1) shown in the figure.

am3uuw00003564

6. Insert a fastener remover from the position of arrow (2) shown in the figure, and remove the lift lever cover by disengaging the tab.

7. Remove the screws, then remove the lift lever in the direction of the arrow.

am3uuw00003565

8. After operating the recliner knob in the upward direction (3), cut the area indicated in the figure, then remove the recliner knob in the direction of arrow (4).

am3uuw00003566

Caution

• The seat back folds forward when the recliner knob is operated. Be careful when operating the recliner knob.

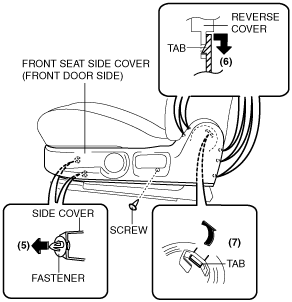

9. Remove the screw, pull the side cover (front door side) in the order of (5), (6), (7) shown in the figure to disengage the fastener and tab.

am3zzw00006550

10. Remove the front seat side cover (front door side).

11. Remove the fastener left to the front seat frame and install it to the original position of the cover.

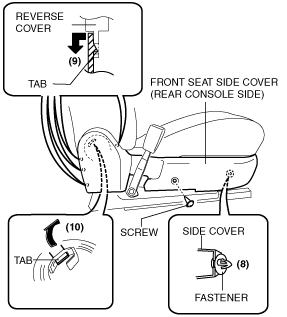

12. Remove the screw, and pull the side cover (rear console side) in the order of (8), (9), (10) shown in the figure to disengage the fastener and tab.

am3zzw00006551

13. Remove the front seat side cover (rear console side).

14. Remove the fastener left to the front seat frame and install it to the original position of the cover.

15. Install in the reverse order of removal.

Passenger-side

1. After operating the recliner knob in the upward direction (1), cut the area indicated in the figure, then remove the recliner knob in the direction of arrow (2).

am3uuw00003569

Caution

• The seat back folds forward when the recliner knob is operated. Be careful when operating the recliner knob.

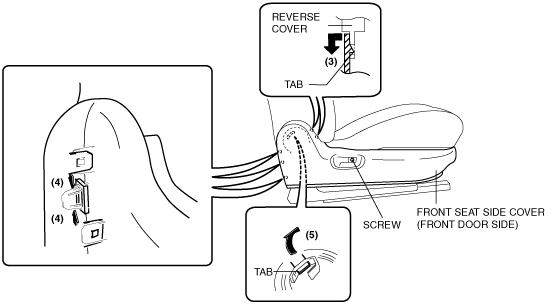

2. Remove the screw, and pull the side cover (front door side) in the order of (3), (4), (5) shown in the figure to disengage the tab.

am3zzw00005692

3. Remove the front seat side cover (front door side).

4. Remove the screws, and pull the side cover (rear console side) in the order of (6), (7), (8) shown in the figure to disengage the tab.

am3uuw00003571

5. Remove the front seat side cover (rear console side).

6. Install in the reverse order of removal.

R.H.D.

Driver-side (recliner dial type)

1. Switch the ignition to off.

4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5. Operate the lift lever in the direction of arrow (1) shown in the figure.

am3zzw00005693

6. Insert a fastener remover from the position of arrow (2) shown in the figure, and remove the lift lever cover by disengaging the tab.

7. Remove the screws, then remove the lift lever in the direction of the arrow.

am3zzw00005694

8. Using a cloth, remove the recliner dial installation clip and remove the recliner dial.

am3zzw00005695

9. Pull the side cover (front door side) in the order of (3), (4), (5) shown in the figure to disengage the fastener and tab.

am3zzw00005696

10. Remove the front seat side cover (front door side).

11. Remove the fastener left to the front seat frame and install it to the original position of the cover.

12. Remove the screw, and pull the side cover (rear console side) in the order of (6), (7), (8) shown in the figure to disengage the fastener and tab.

am3zzw00006552

13. Remove the front seat side cover (rear console side).

14. Remove the fastener left to the front seat frame and install it to the original position of the cover.

15. Install in the reverse order of removal.

Recliner Dial Installation Note

1. Install the clip to the recliner dial in the direction of arrow (1) shown in the figure.

am3zzw00005698

2. Install the recliner knob to the front seat side cover in the direction of arrow (2) shown in the figure.

am3zzw00005699

Driver-side (recliner lever type)

1. Switch the ignition to off.

4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5. Operate the lift lever in the direction of arrow (1) shown in the figure.

am3zzw00005693

6. Insert a fastener remover from the position of arrow (2) shown in the figure, and remove the lift lever cover by disengaging the tab.

7. Remove the screws, then remove the lift lever in the direction of the arrow.

am3zzw00005700

8. After operating the recliner knob in the upward direction (3), cut the area indicated in the figure, then remove the recliner knob in the direction of arrow (4).

am3zzw00005701

Caution

• The seat back folds forward when the recliner knob is operated. Be careful when operating the recliner knob.

9. Remove the screw, pull the side cover (front door side) in the order of (5), (6), (7) shown in the figure to disengage the fastener and tab.

am3zzw00006553

10. Remove the front seat side cover (front door side).

11. Remove the fastener left to the front seat frame and install it to the original position of the cover.

12. Remove the screw, and pull the side cover (rear console side) in the order of (8), (9), (10) shown in the figure to disengage the fastener and tab.

am3zzw00006554

13. Remove the front seat side cover (rear console side).

14. Remove the fastener left to the front seat frame and install it to the original position of the cover.

15. Install in the reverse order of removal.

Passenger-side

1. After operating the recliner knob in the upward direction (1), cut the area indicated in the figure, then remove the recliner knob in the direction of arrow (2).

am3zzw00005704

Caution

• The seat back folds forward when the recliner knob is operated. Be careful when operating the recliner knob.

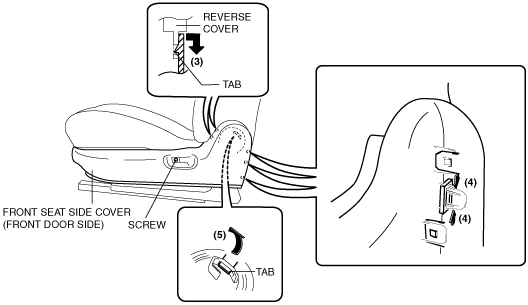

2. Remove the screws, and pull the side cover (front door side) in the order of (3), (4), (5) shown in the figure to disengage the tab.

am3zzw00005705

3. Remove the front seat side cover (front door side).

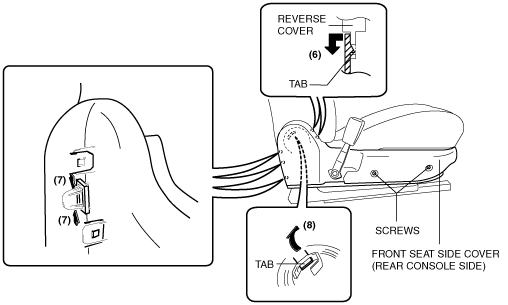

4. Remove the screw, and pull the side cover (rear console side) in the order of (6), (7), (8) shown in the figure to disengage the tab.

am3zzw00005706

5. Remove the front seat side cover (rear console side).

6. Install in the reverse order of removal.
