REAR OUTER HANDLE REMOVAL/INSTALLATION

id091400510200

1.  Fully close the rear door glass.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Remove the regulator handle. (Vehicles without rear power window) (See REGULATOR HANDLE REMOVAL.) (See REGULATOR HANDLE INSTALLATION.)

4.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

5.  Remove the service hole cover.

am3uuw00002769

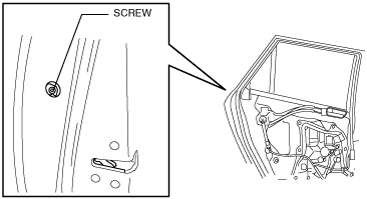

6.  Remove the screw from the service hole.

am3uuw00002809

Note

•  The screw cannot be removed because of the stopper.

7.  Press the tab on the rear outer handle bracket in the direction of the arrow.

am3uuw00002810

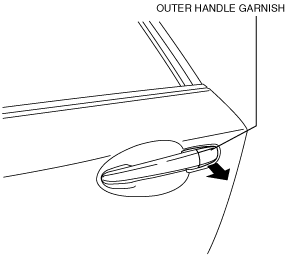

8.  Maintaining the condition in procedure 6, remove the outer handle garnish.

am3uuw00002811

9.  Remove the rear outer handle.

am3uuw00002812

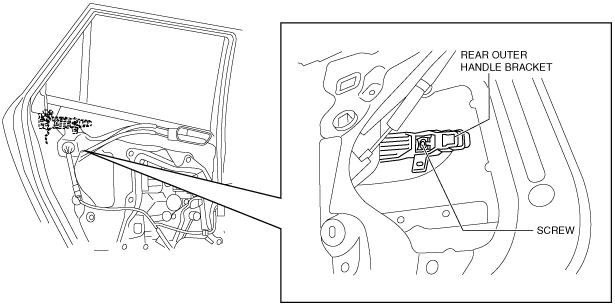

10.  Loosen the screw.

am3uuw00002813

11.  Press down the rod holder in the direction of arrow (1) and remove the rear outer handle bracket in the direction of arrow (2).

am3zzw00011132

12.  Install in the reverse order of removal.
