BONNET LATCH SWITCH INSPECTION

id091400510600

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the bonnet latch. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

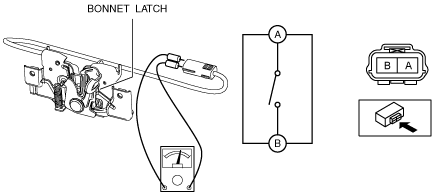

3.   Verify that the continuity is as indicated in the table.

am3zzw00011928

am3zzw00010587

•  If not as indicated in the table, replace the bonnet latch.

Note

•  Press the latch lever in using a flathead screwdriver to inspect the closed condition of the bonnet latch switch.

am3uuw00008363
