SUNROOF SWITCH INSPECTION

id091500800300

Note

•  The sunroof switch is together with the front map light.

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the map light from the headliner. (See MAP LIGHT REMOVAL/INSTALLATION.)

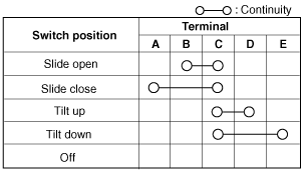

3.  Inspect for continuity between the sunroof switch terminals using an ohmmeter.

am3uuw00004173

•  If not as specified, replace the sunroof switch.

am3uuw00005413
