INNER GARNISH REMOVAL/INSTALLATION

id091700801000

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

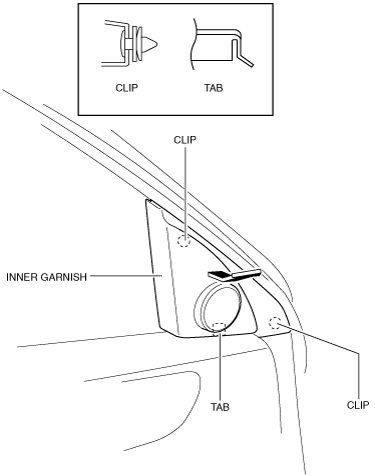

2.  Pull the inner garnish in the direction of the arrow shown in the figure and remove it while detaching clips and tab.

am6zzw00001732

Caution

•  When pulling out the inner garnish, be careful not to damage the tab.

3.  Disconnect the front tweeter connector. (Vehicles with tweeter)

4.  Install in the reverse order of removal.
