CENTER LOWER PANEL REMOVAL/INSTALLATION

id091700999200

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION.)

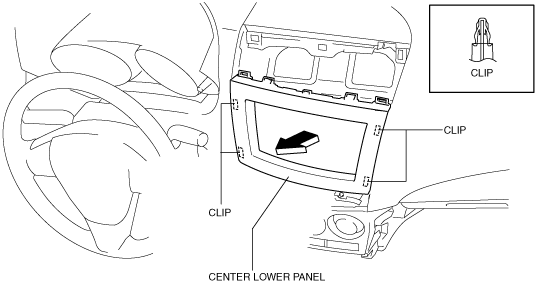

3.  Pull the center lower panel while remove the clips.

am3zzw00012333

4.  Remove the center lower panel.

5.  Install in the reverse order of removal.
