REAR COMBINATION LIGHT REMOVAL/INSTALLATION

id091800801000

4SD

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the following parts:

(1)  Trunk mat (See TRUNK BOARD REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(4)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connectors shown in the figure and remove the nuts.

am3uuw00007118

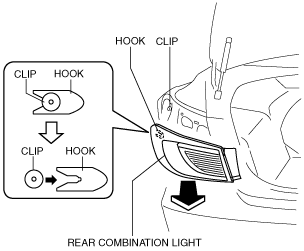

4.  Pull the rear combination light in the direction of the arrow to detach it from the hook.

am3uuw00007119

5.  Remove the rear combination light.

6.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the service hole cover.

am3uuw00005376

3.  Disconnect the connectors shown in the figure and remove the nuts.

am3uuw00007120

4.  Pull the rear combination light in the direction of the arrow to detach it from the hook.

am3uuw00007121

5.  Remove the rear combination light.

6.  Install in the reverse order of removal.
