MAP LIGHT INSPECTION


id091800801300

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

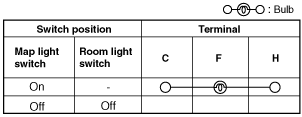

3.  Verify that the continuity between the map light terminals is as indicated in the table.

am3uuw00007151
am3uuw00007126

•  If not as indicated in the table, inspect the bulb. If there is no malfunction, replace the map light.

4.  Apply battery positive voltage to map light terminal C, and connect terminal F to ground.

5.  Switch the interior light switch to the DOOR position and verify that the map light illuminates.

•  If the light does not illuminate, replace the map light.
