HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION

id091800802000

4SD

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

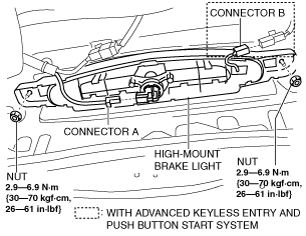

3.  Disconnect the connector A.

am3zzw00012238

4.  Disconnect the connector B. (with advanced keyless entry and push button start system)

5.  Remove the nuts.

6.  While pressing the tabs shown in the figure, pull the high-mount brake light outward and remove it.

am3uuw00005396

7.  Remove the high-mount brake light.

8.  Install in the reverse order of removal.

5HB

Except Mazdaspeed3

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  While pressing the tabs shown in the figure, pull the high-mount brake light outward and remove it.

am3uuw00005397

4.  Remove the high-mount brake light socket.

am3uuw00005398

5.  Remove the high-mount brake light.

6.  Install in the reverse order of removal.

Mazdaspeed3

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Remove the rear spoiler. (See REAR SPOILER REMOVAL/INSTALLATION.)

4.  Remove the screws shown in the figure.

am3uuw00005723

5.  Set the pin aside and remove the cover.

am3uuw00005724

6.  Remove the screws shown in the figure.

am3uuw00005725

7.  Pull out the wiring harness from the rear spoiler.

am3uuw00005726

8.  Remove the high-mount brake light.

9.  Install in the reverse order of removal.
