HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION

id091800803600

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

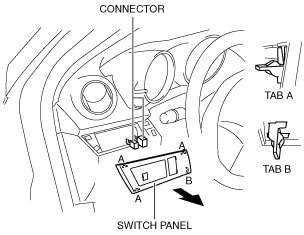

2.  Remove the switch panel in the direction of the arrow shown in the figure.

am3uuw00005293

3.  Disconnect the connector.

4.  Remove the headlight leveling switch in the direction of the arrow (2) shown in the figure while pressing the tabs in the direction of the arrow (1).

am3uuw00005241

5.  Remove the headlight leveling switch.

6.  Install in the reverse order of removal.
